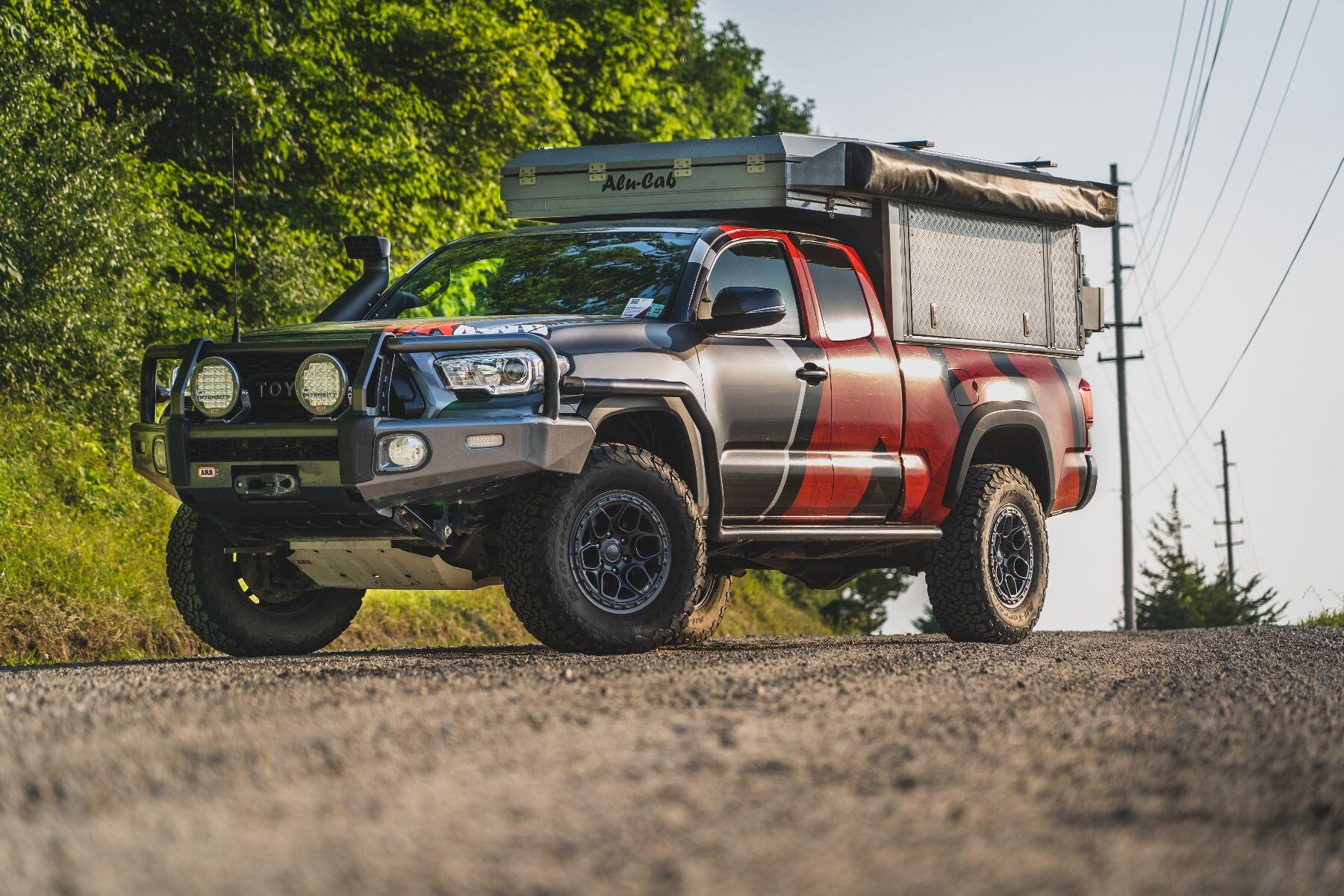

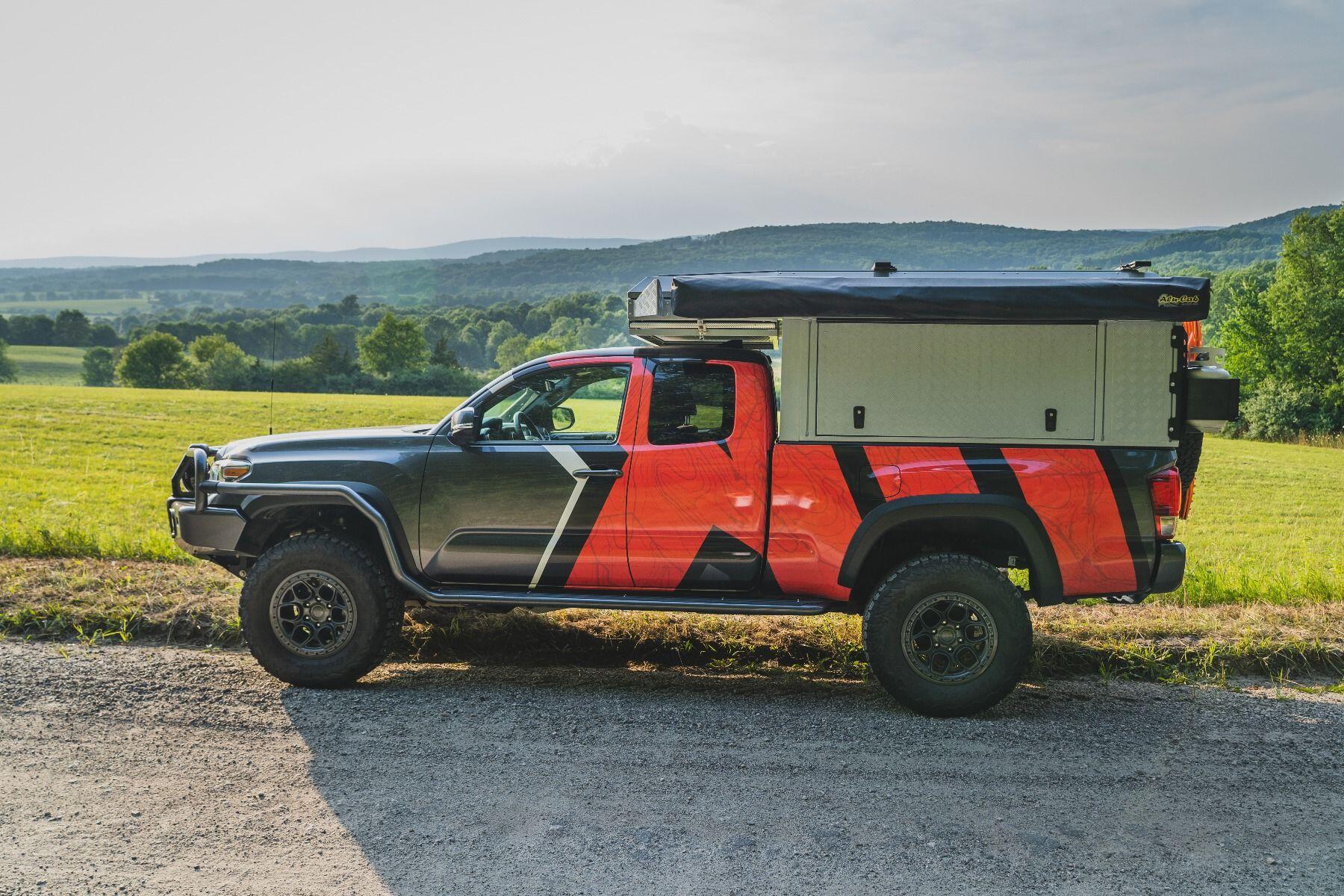

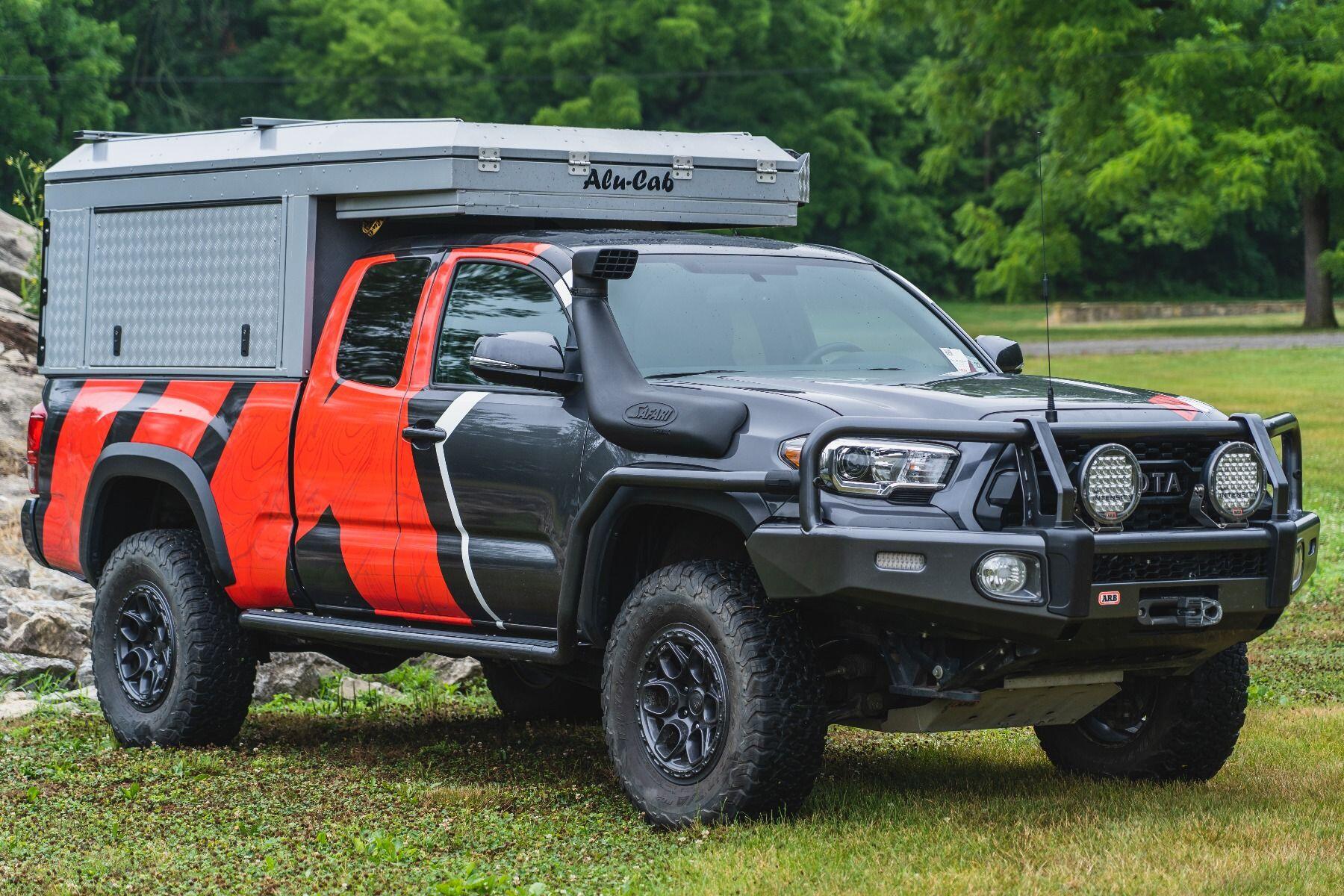

Alu-Cab Toyota Tacoma Canopy Camper 2016+

Contact us for availability. 817-330-4466

About 10-years ago, Alu-Cab noticed a gap in the 4×4 rental market; essentially, a need for a lightweight, versatile, mid-range camper solution.

In many respects, the safari rental market in Africa is the ideal testing ground for overland gear, and after exhaustive development, we designed a camper that combined the best of both worlds: it had the lightweight and low-profile benefits of a modular canopy, combined with the versatility and spacious living quarters of a camper.

Features

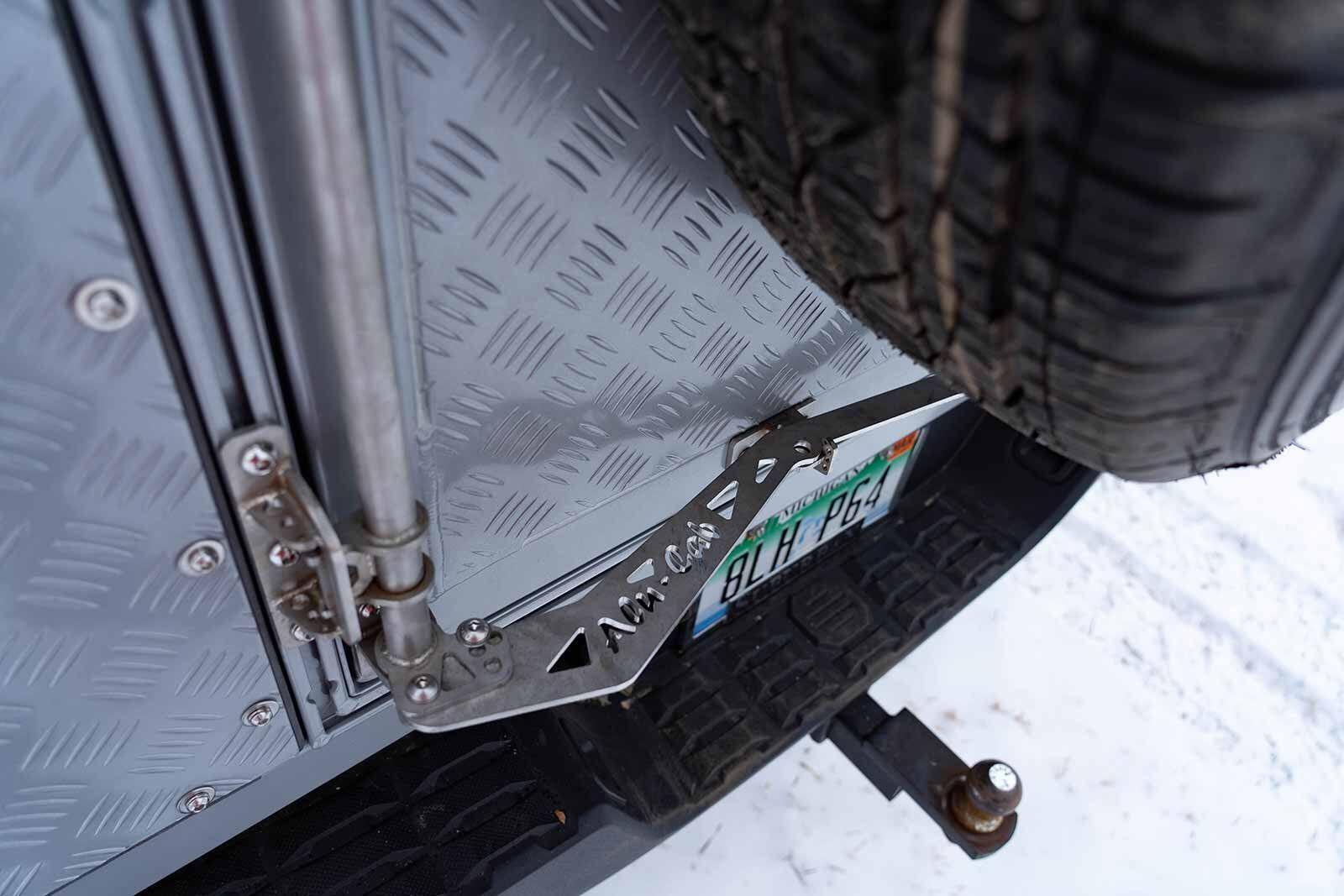

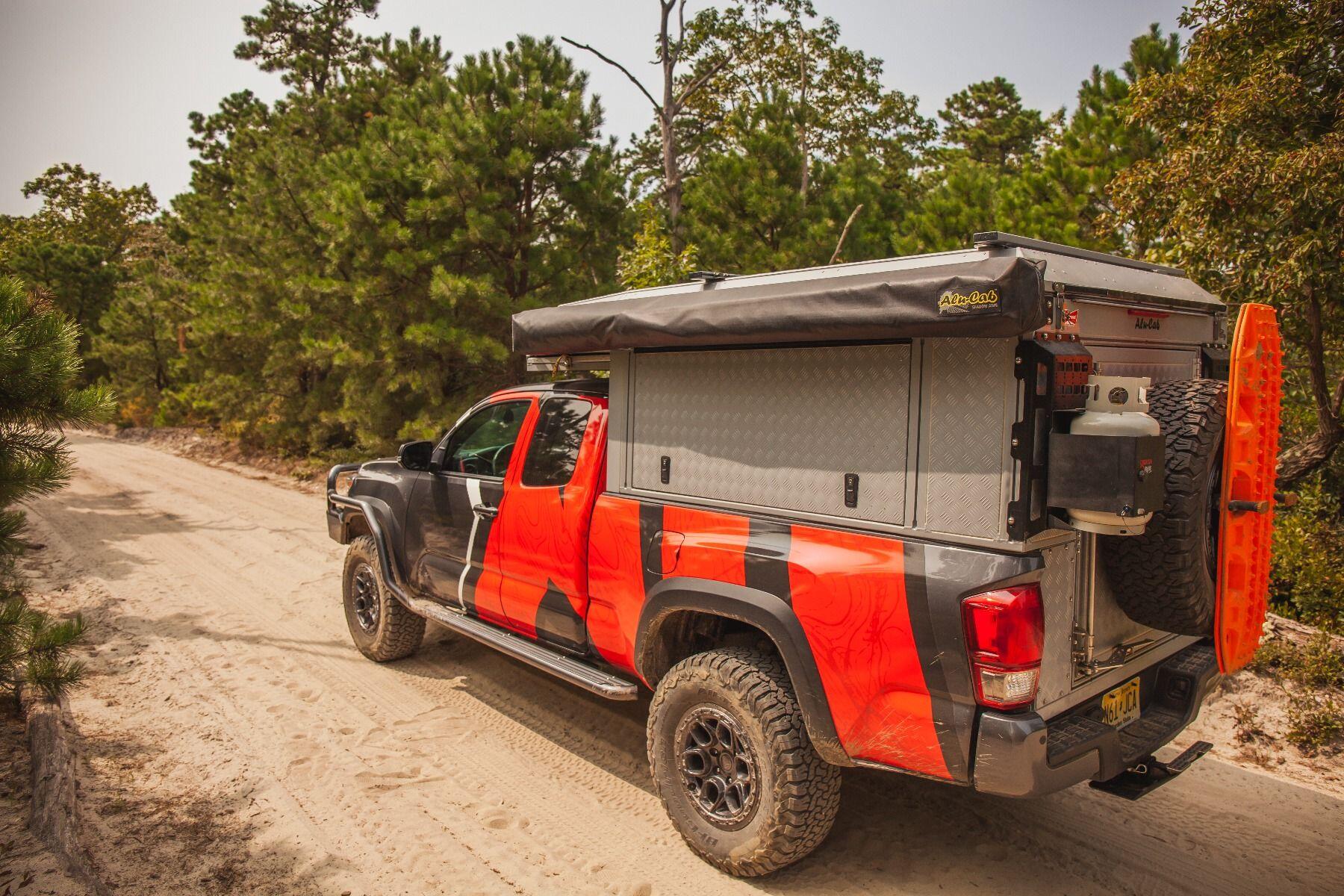

• An easy-access vertical door with heavy-duty hinges, and the ability to mount a 33" spare wheel on the back with the addition of the Spare Wheel Bracket. This rear door design eliminates dust and water intrusion commonly found with other canopy style campers.
• The canopy camper utilizes proprietary extrusions that are used throughout the construction for drill-free vehicle installation and fitment of accessories.
• Utilizes tried and true dual-layer ripstop canvas for optimal insulation along with a seamless design to prevent leaks.

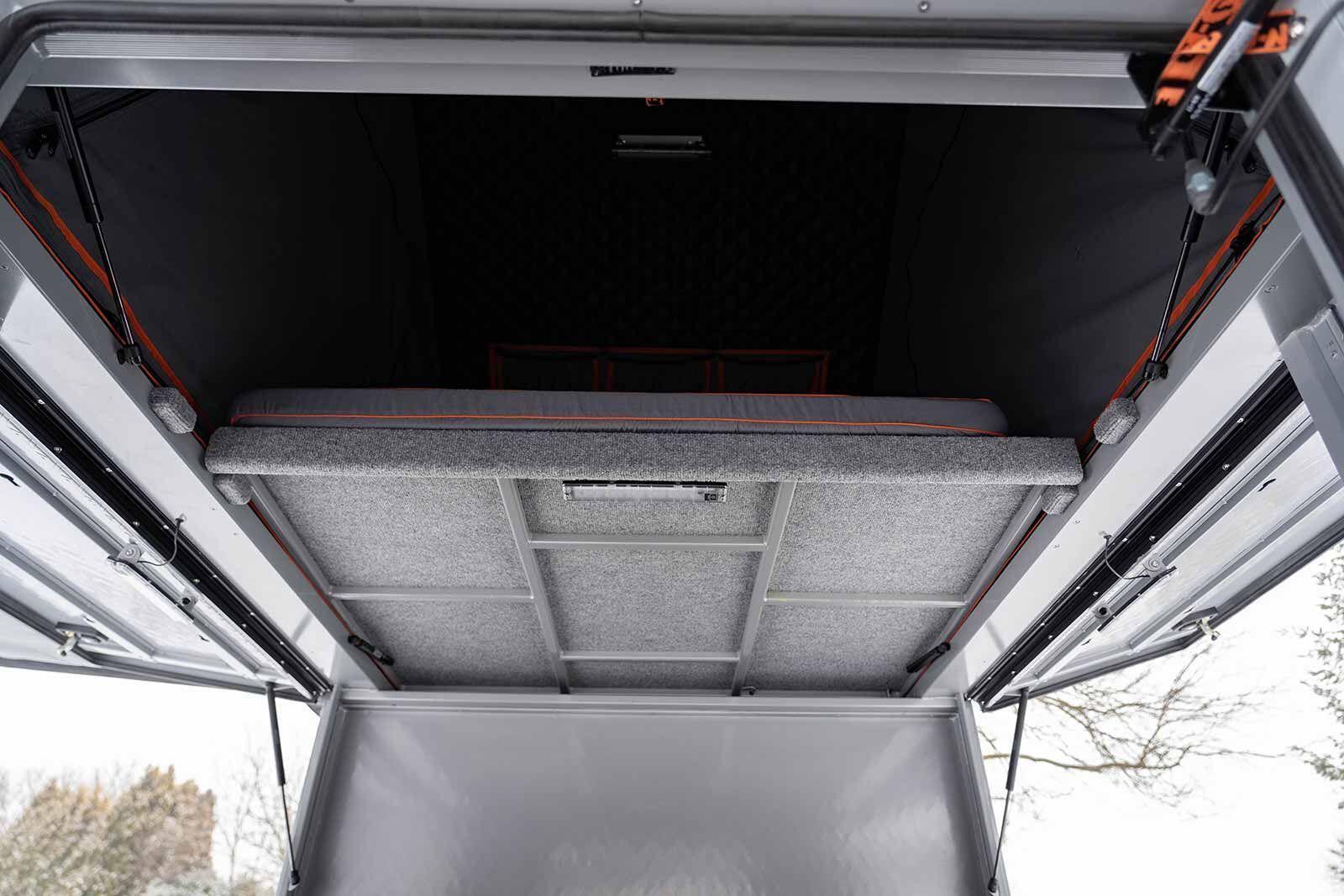

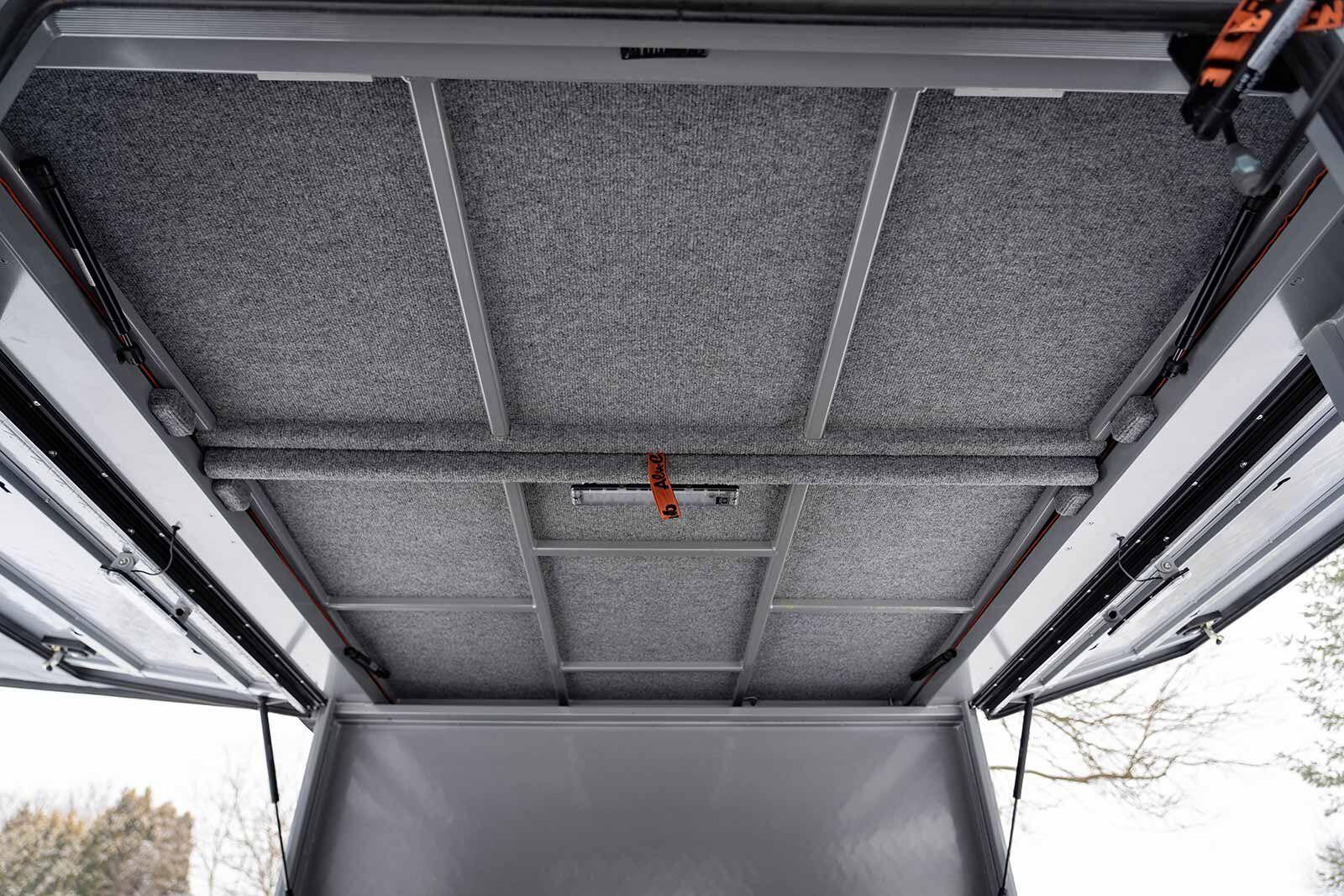

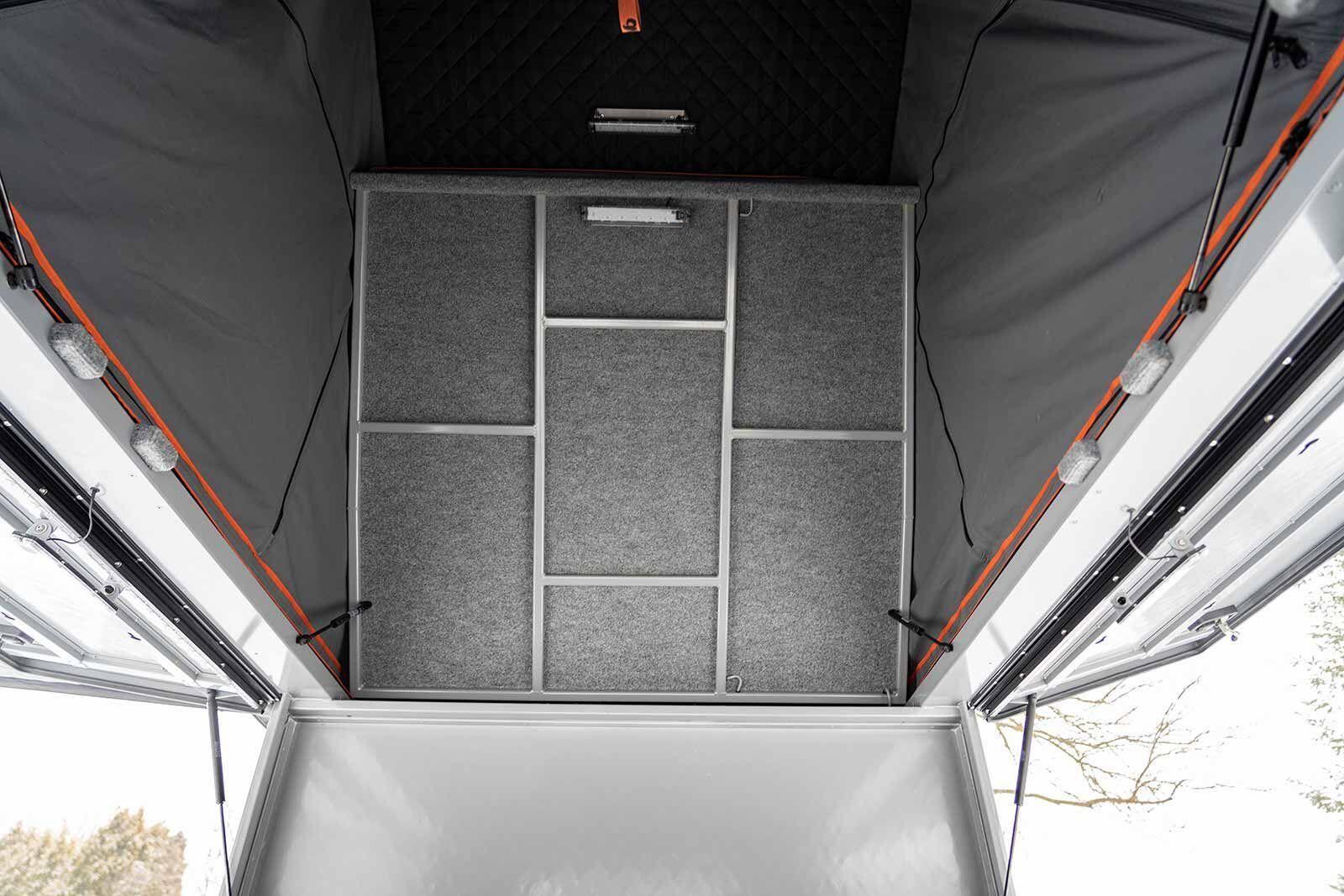

• Improved 150mm tall bed area provides ample room for 75mm closed cell foam mattress and additional bedding to be easily stored in place while closed.
• Features integrated roof rails to facilitate the mount of various rooftop accessories.

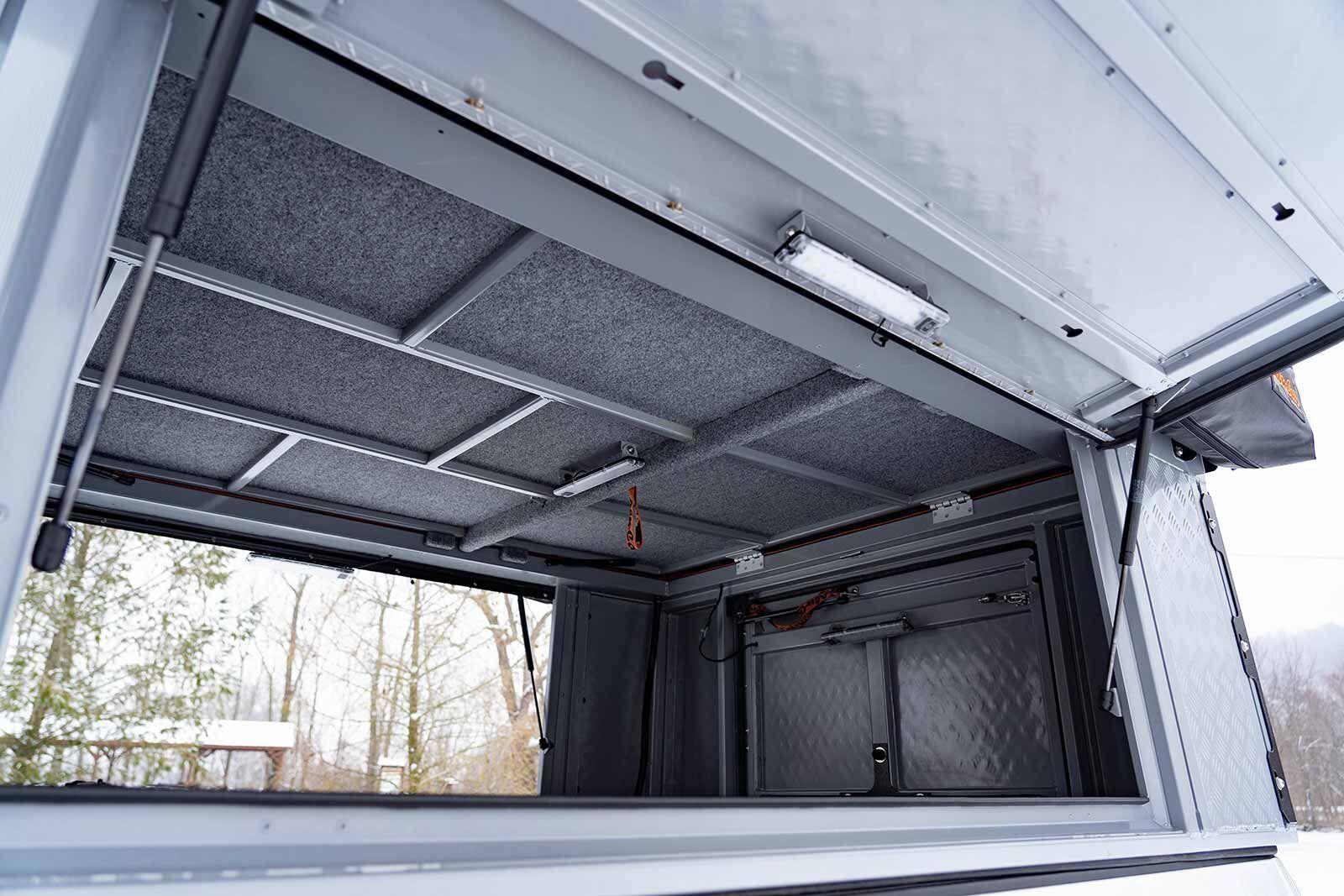

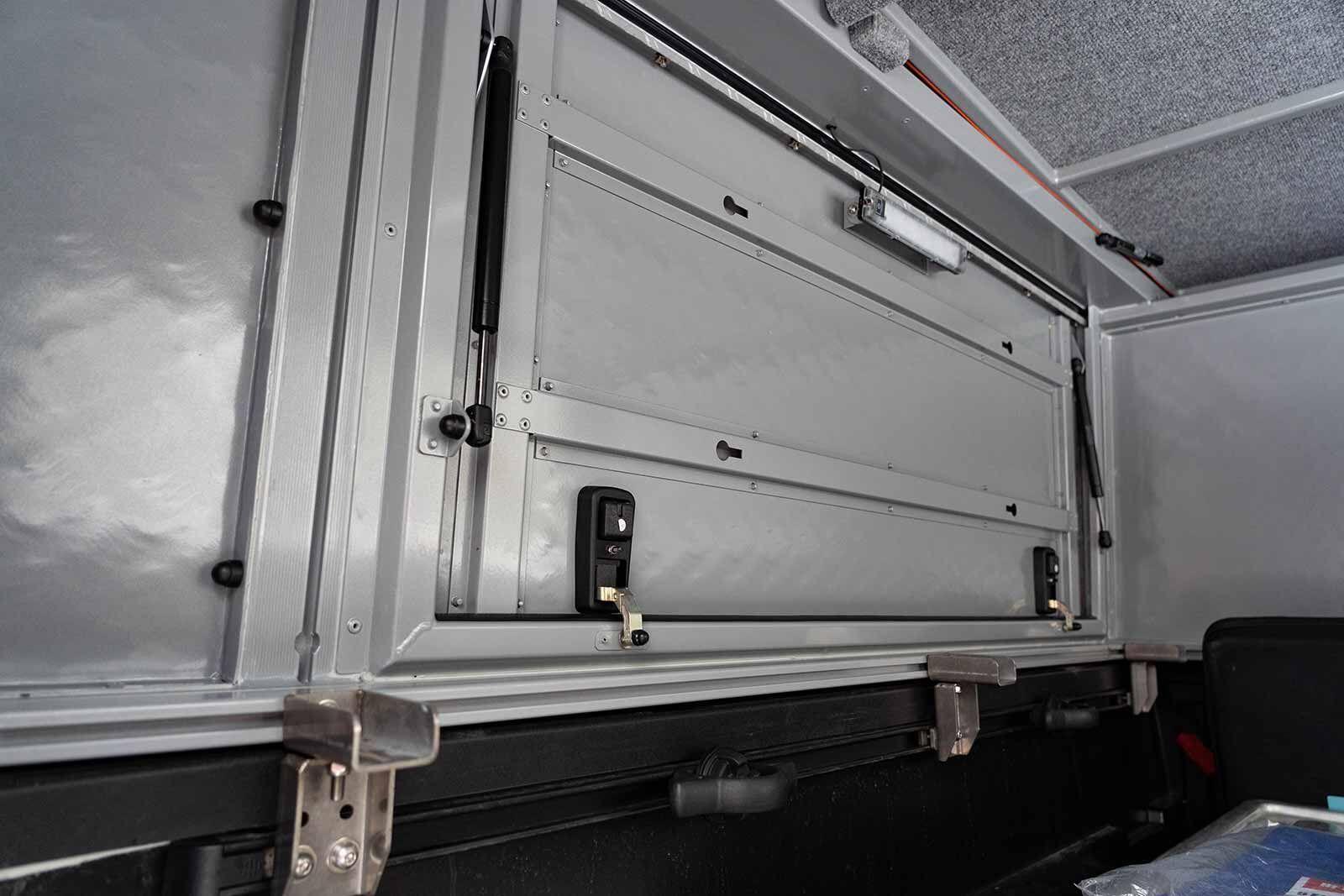

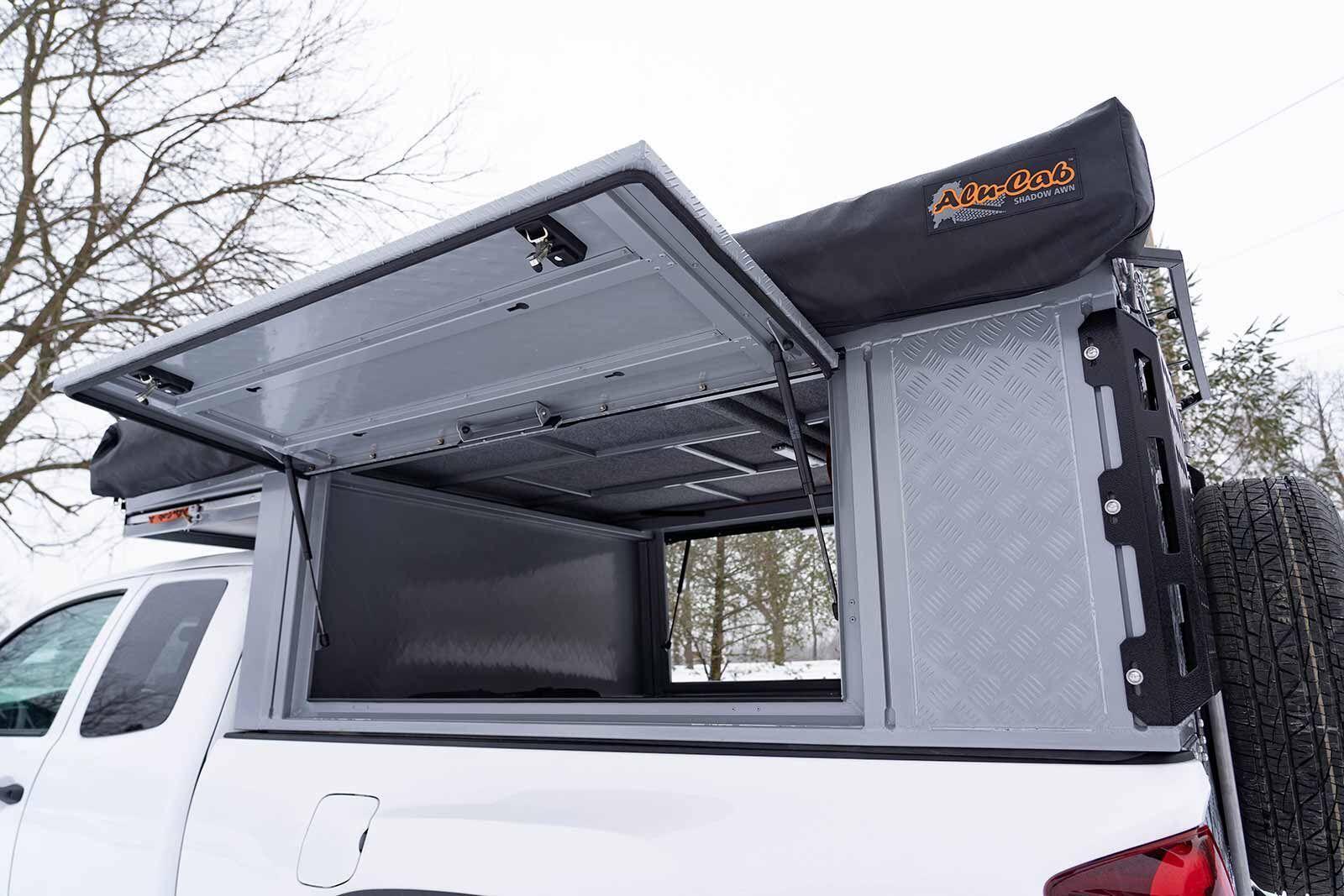

• Oversized side gullwing doors allow unobstructed access to gear and airflow while in camp.

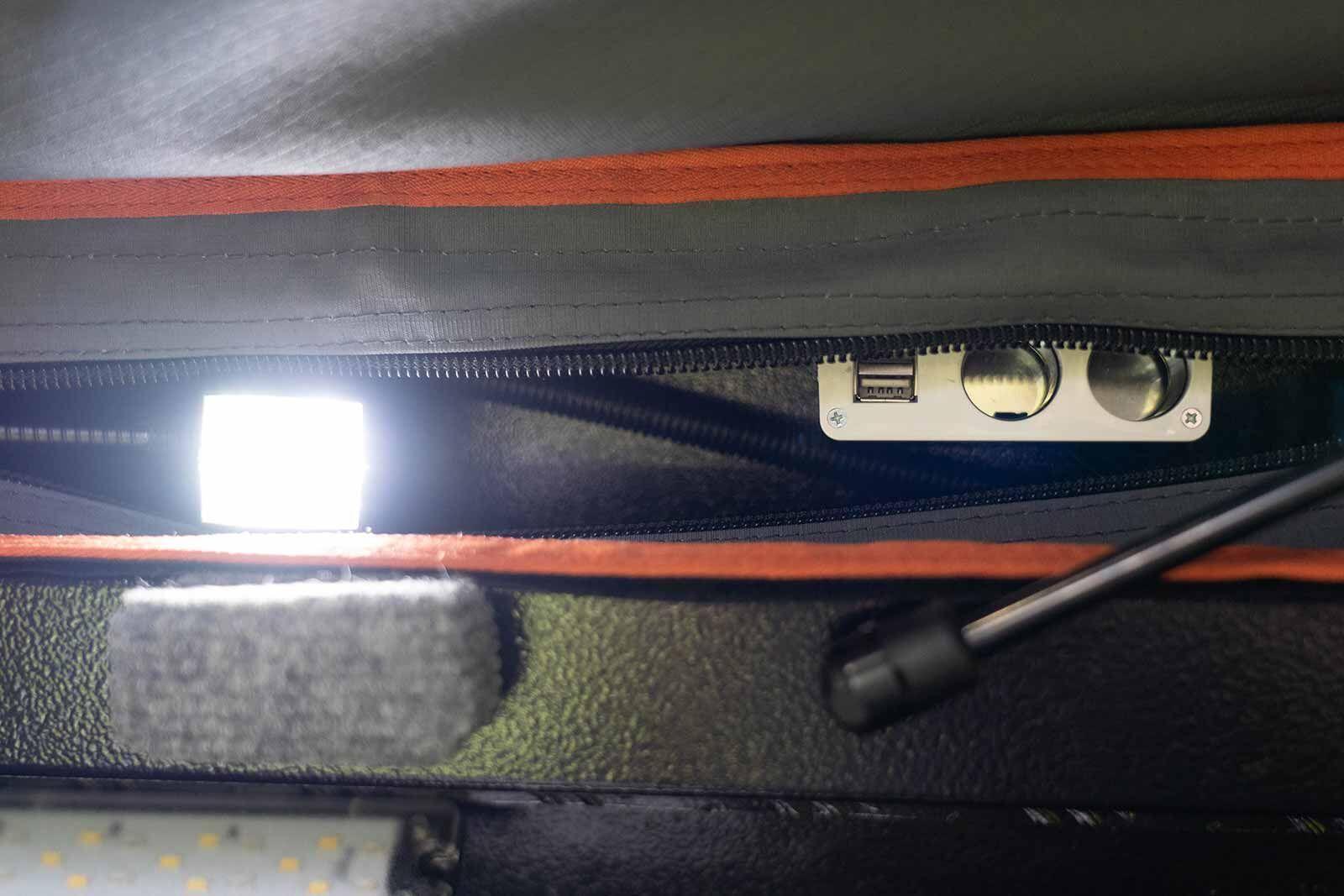

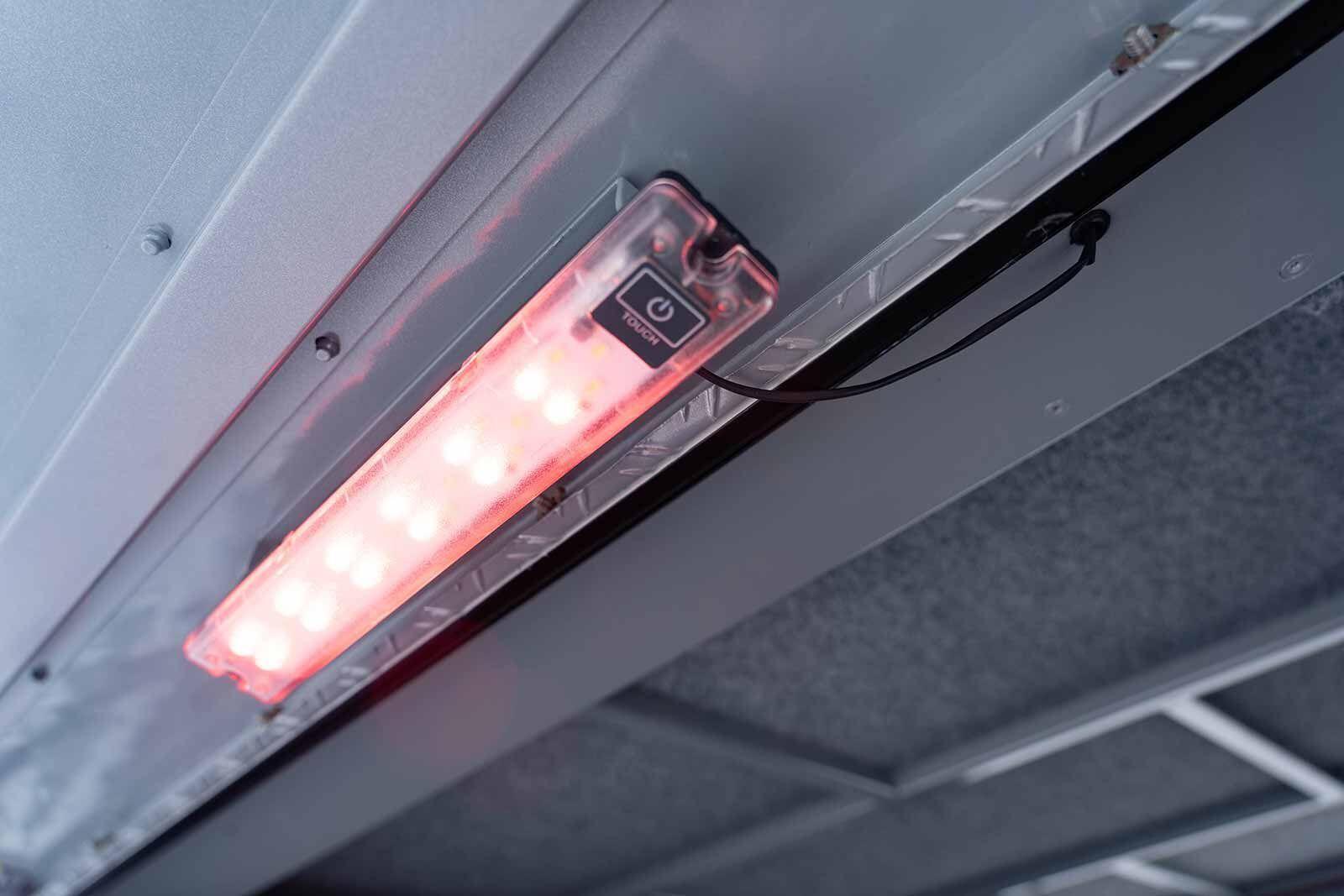

• Industry exclusive standard electrical package includes five National Luna dual color LED lights, USD & 12v Chargers and Solar Pre-wire to make installation of solar panels plug and play.

Product Specifications

• Dimensions:
  • Main Bed Section: 2075mm x 1225mm (81.6" x 48.22")
  • Rear Bed Section: 1225mm x 430mm x 1340mm (48.22" x 16.9" x 52.7")
  • Roof Bed Size: 2600mm x 1340mm (102.3" x 52.7")
  • Length: 2865mm (112.7") (3035mm/119.4" with wheel carrier)
  • Height:
    • Roof Closed: 1365mm (53.7")
    • Roof Open: 2520mm (99.2")
  • Width: 1600mm (62.99")
• Weight:
  • Dry Weight: 210kg (462.9lbs)
  • Fully Kitted Weight: Approximately 250kg (551.1lbs)

Solar

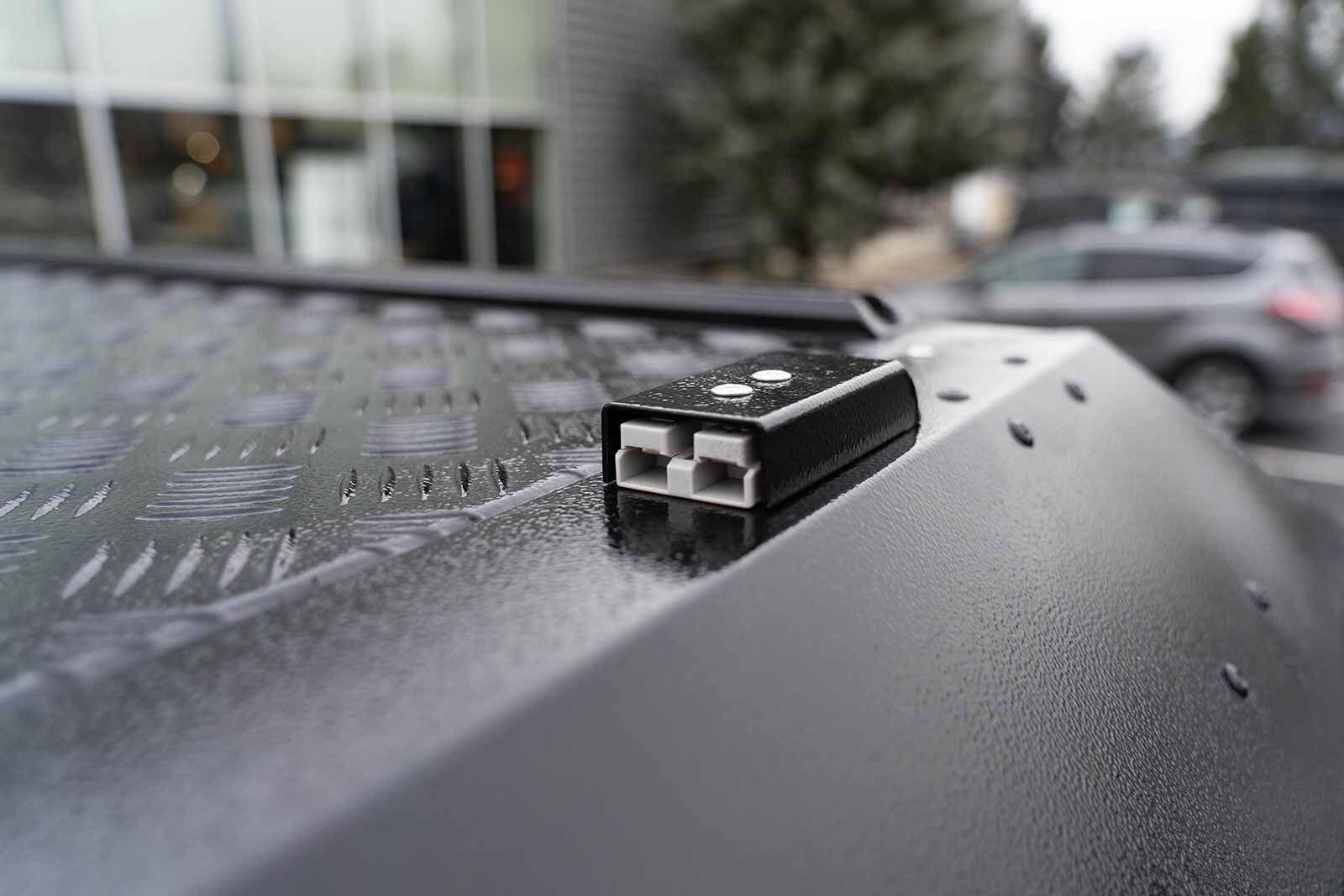

From the factory, the Alu-Cab Canopy Camper comes pre-wired for solar. This includes a convenient Anderson SB50 Plug that is mounted to the roof exterior. While the Alu-Cab Canopy Camper can accept any solar, we have worked with Sunflare to produce panels that are optimized for the available roof space while still accommodating a pair of load bars.

The two solar options available are:

Sunflare 126W Solar Panel Kit The Sunflare 126W Solar Panel is more flexible than silicon-based solar panels. That makes them easier to install and eliminates the micro-cracking that silicon cells experience after the flexing of sport and recreational driving. Micro-cracking compromises the electrical integrity and reduces the power output of the panels over time. In addition, the Sunflare panels are better in partial shade. Each cell has a bypass diode so that only the shaded cell turns off. Other panels are set in strings so that if one cell in a string is shaded, the whole string goes out.

Sunflare 126W Extension Panel for 252W Solar Package The Sunflare 126W Extension Panel is a variant of the Sunflare 126W panel that is specifically made to be used in conjunction with a standard Sunflare 126W panel. Important Fitment Notes: The Sunflare 126W Solar Panel Kit is required for the extension panel.

Awning

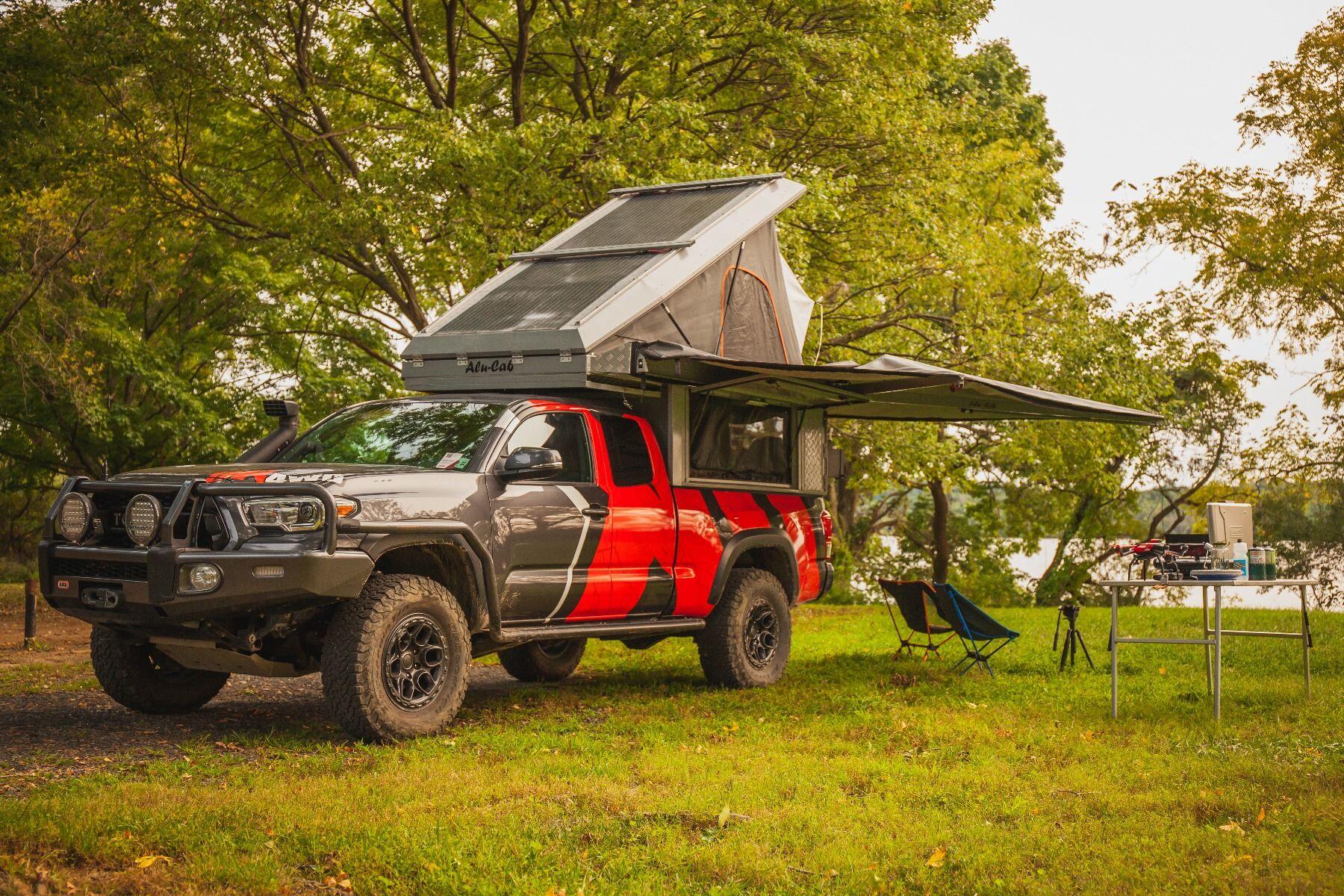

	Shadow Awning One of Alu-Cab's best selling products, the Shadow Awning has become the standard in vehicle awnings for its fast deployment and incredible strength while remaining lightweight. The Shadow Awning is only available in left hand configuration for the Canopy Camper. Important Fitment Notes: The Shadow Awn Mounting Brackets and Deflector is required to install the Shadow Awning.
	Shadow Awn Mounting Brackets and Deflector If you want the Shadow Awning, you're going to need the Shadow Awning Mounting Brackets & Deflector. The brackets will allow you to install the awning to the canopy camper and the deflector installs in front of the awning to deflector brush, branches, and trees away from the awning.
	Shadow Awning Gutter A must-have addition for the adventurer who finds themselves using the Shadow Awning in all types of conditions is the gutter kit. This kit enables one to close the gap between vehicle and awning. This way further sealing the user from those stormy conditions. Important Fitment Notes: The Shadow Awning is required to install the Shadow Awning Gutter.

Shower

Shower Cube The Alu-Cab Shower Cube incorporates the quick yet stout design of the Shadow Awn providing a privacy curtain perfect for showers, a quick clothing change or any activity best kept form the eyes of others. Important Fitment Notes: The Shower Cube Brackets are required to install the Shower Cube.

Interior Canvas Storage Solutions

Lightweight and versatile these canvas storage pockets offer great options to store all your gear.

	Canvas Bag at Front Panel These canvas bags attach to front of the canopy camper on the interior.
	Canvas Bag on Rear Door These canvas bags attach to the interior of the rear door.
	Canvas Bags in Corners These canvas bags attach to the interior between the rear door and side doors.

Bug Screens

Side Window Screen Kit The Mozzie or Midgie net is a practical accessory used on our Canopy Campers to keep bugs and insects out of your vehicle while allowing fresh air inside. It is attached to the interior of the side doors with self-adhesive Velcro. They are designed with a heavy-duty canvas cover to provide additional insulation in colder temps (the same material as our Alu-Cab Tents), which can be rolled up, exposing the netting material only. Alternatively, the netting window can be zipped open and rolled up, providing an open window.

Rear Door Screen Kit The Mozzie or Midgie net is a practical accessory used on our Canopy Campers to keep bugs and insects out of your vehicle while allowing fresh air inside. It is attached to the interior of the side doors with self-adhesive Velcro. They are designed with a heavy-duty canvas cover to provide additional insulation in colder temps (the same material as our Alu-Cab Tents), which can be rolled up, exposing the netting material only. Alternatively, the netting window can be zipped open and rolled up, providing an open window.

Exterior & Interior Table

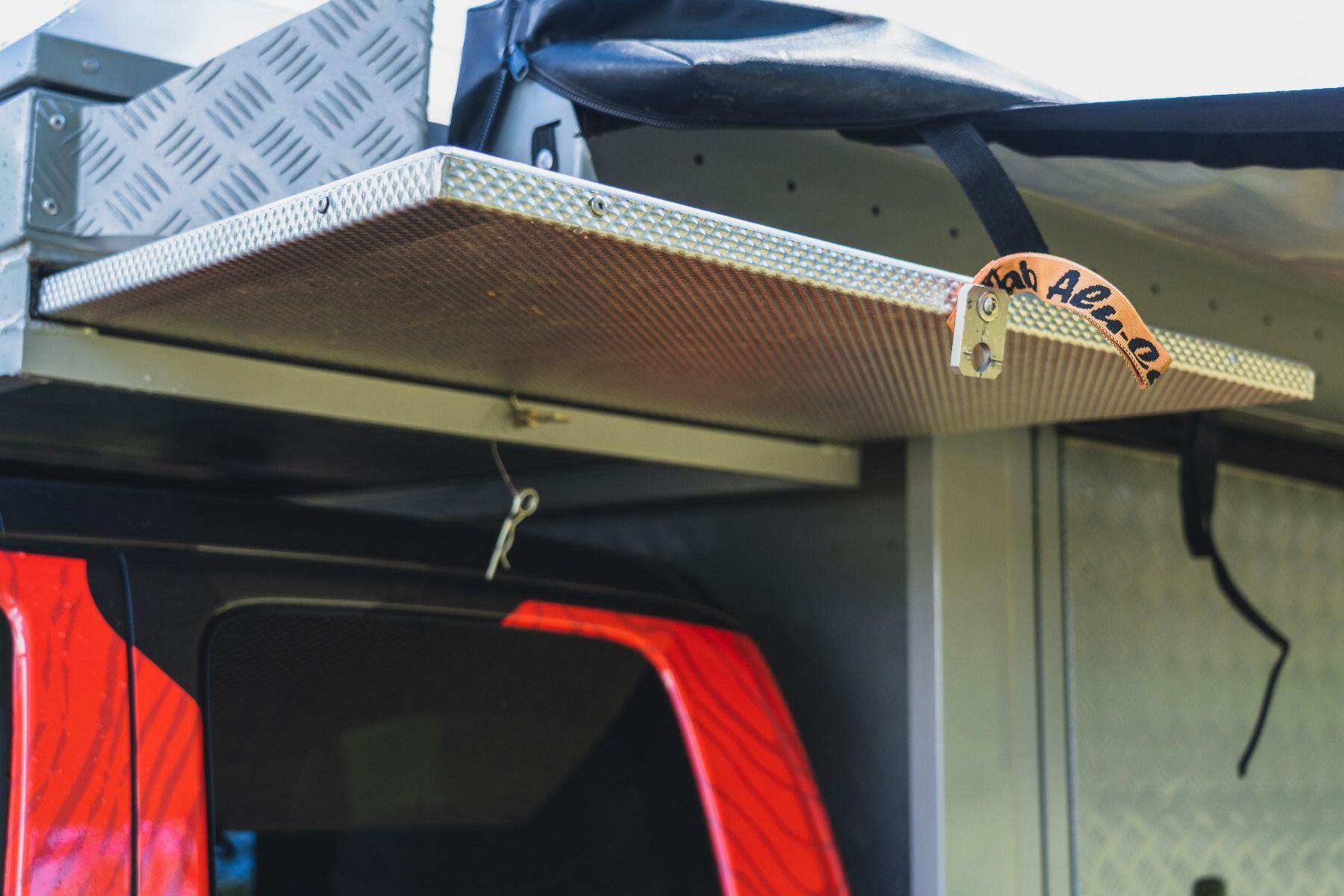

	Alu-Cab Aluminum Table Alu-Cab’s aluminum camping table like most of our products is built almost entirely from aluminum. The bonus of this, is it keeps the weight down but as usual still offers the strength Alu-Cab is known for. Built from a strong aluminum frame with legs that jump into position via gas struts it almost eliminates the effort to set up. The table top is made from rigidised aluminum that helps to prevent scratching. It’s a must have product for all campers! Important Fitment Notes: The Table Slide is required to install the aluminum table.

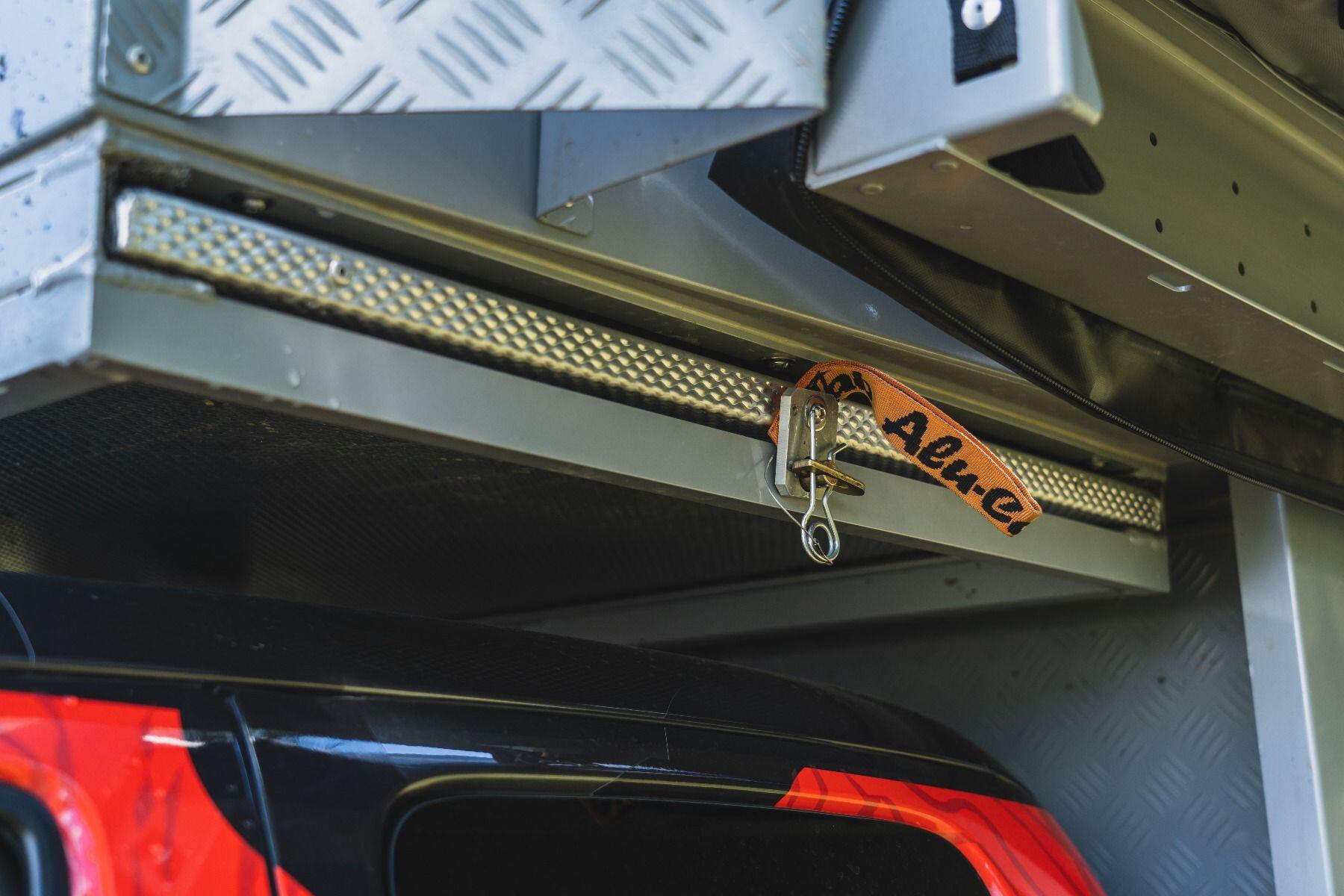

	Alu-Cab Table Slide If you want the aluminum table, you will need the table slide. The table slide installs below the canopy camper above the cab of the vehicle. This allows you to quickly deploy and stow the table.
	GP Factor Rear Door Drop Table Add versatility to your Alu-Cab Canopy Camper! The GP-Factor Drop Table comes with 3/16 stainless rivets for installation. The table is made from complete stainless pieces with a zinc 1/2" pull tab latch.

Exterior Accessories

	Rear Molle Panels (Sold As Pair) This accessory uses the unique space created by our rear door design, allowing endless mounting opportunities on the back of the Canopy Camper. This is especially important for items like Fuel, Propane and other items not welcomed inside the living space of your camper.
	Spare Wheel Bracket The Canopy Camper Spare wheel bracket has a multi stud universal PCD layout to fit all OEM wheel holes. We’ve added an adjustable section that can fit various wheel offsets and gives you the ability to tighten the wheel against the wheel carrier. This clamping feature allows the wheel to be securely held in place and removes any vibrations that can lead to part failure and further injuries to vehicles behind you.
	Jerry Can Holder The PQBM is a secure quick opening and locking solution for mounting the commonly used 11lb and 5lb propane bottles from Flame King and Worthington. Quick opening single turn access by way of a special key and compression lock. Constructed from .125 5052 Aluminum for strength and increased weight savings. Powder coated black for corrosion resistance and a perfect match for the Canopy Camper. Important Fitment Notes: Requires the Rear MOLLE Panels to install. Important Fitment Notes: Requires the rear MOLLE Panels to install.
	Expedition Essentials 11lb Propane Tank Mount The PQBM is a secure quick opening and locking solution for mounting the commonly used 11lb and 5lb propane bottles from Flame King and Worthington. Quick opening single turn access by way of a special key and compression lock. Constructed from .125 5052 Aluminum for strength and increased weight savings. Powder coated black for corrosion resistance and a perfect match for the Canopy Camper. Important Fitment Notes: Requires the Rear MOLLE Panels to install.
	Load Bars (Sold As Pair) Alu-Cab Load Bars feature a proprietary triple T slot profile and attach directly to the standard integrated roof channels for a low profile. Perfect for attaching your favorite toys and bringing them along for the adventure.
