COMEUP SEAL Slim 9.5rs 9,500lbs Winch with Synthetic Rope & Wireless Remote

COMEUP SEAL Slim 9.5rs 9,500lbs Winch with Synthetic Rope & Wireless Remote

by COMEUP USA
Save 17%
$1,460.00
$1,215.95
Availability: Translation missing: en.general.icons.icon_check_circle icon Only 2 left!

Description

  • 12V DC severe duty winch rated at 9,500 lbs pulling meets or exceeds your expectations.
  • The slim size plus strong of motor housing and gearbox support rack are suitable for equipped with any vehicles.
  • Heavy duty series wound motor delivers superior torque output and faster line speed. A motor equipped with a thermal protection switch
  • New clutch lever kit is easy to engage and disengaged. 16 equally positioned pin holes to ensure seamless clutch transmission and make it easily rotate by 22.5-degree increments.
  • Hardened steel, 3-stage planetary gear train for efficient and reliable operation.
  • Cutout switch prevents the vehicle battery from draining when no use.
  • Both built-in digital two-way wireless remote control and wired waterproof remote control.
  • A 12 strand construction synthetic rope coated to improve abrasion and has no water absorption.



Specifications

Rated Line Pull 9,500 lbs (4,309 kg) single line
Motor 5.0 hp / 3,730 w 12V Series Wound
Gear Ratio 3-Stage Planetary 159:1
Clutch (freespooling) Rotating Ring Gear
Brake (outside the drum) Automatic, full load CBS (Cone Brake Structure)
Winch Construction Aluminum Die Cast Housing with Steel Drum

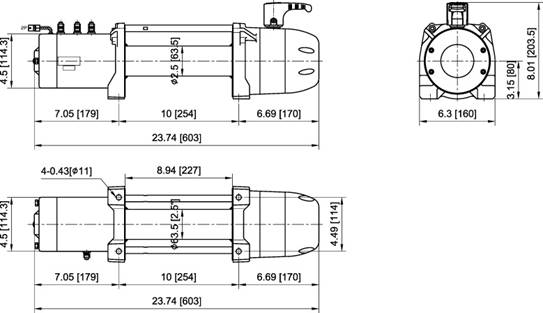

Drum Size 2.5" x 9" (63.5 x 228 mm)
Control Both built-in digital two way signal wireless remote control and waterproof remote with thermometric indicator LED w/17' (5 m) cord
Rope Type Synthetic rope
Warranty Limited lifetime warranty for mechanical components, three (3) year warranty for electrical components
Box Dimensions 26.9" x 8.2" x 16.9" (682 x 209 x 430 mm )
