Toyota Land Cruiser 2008-2021 200 Series - Side x Side Drawer Module with Fitted Top Plate

Toyota Land Cruiser 2008-2021 200 Series - Side x Side Drawer Module with Fitted Top Plate

by Goose Gear
$3,020.00
Color: Black

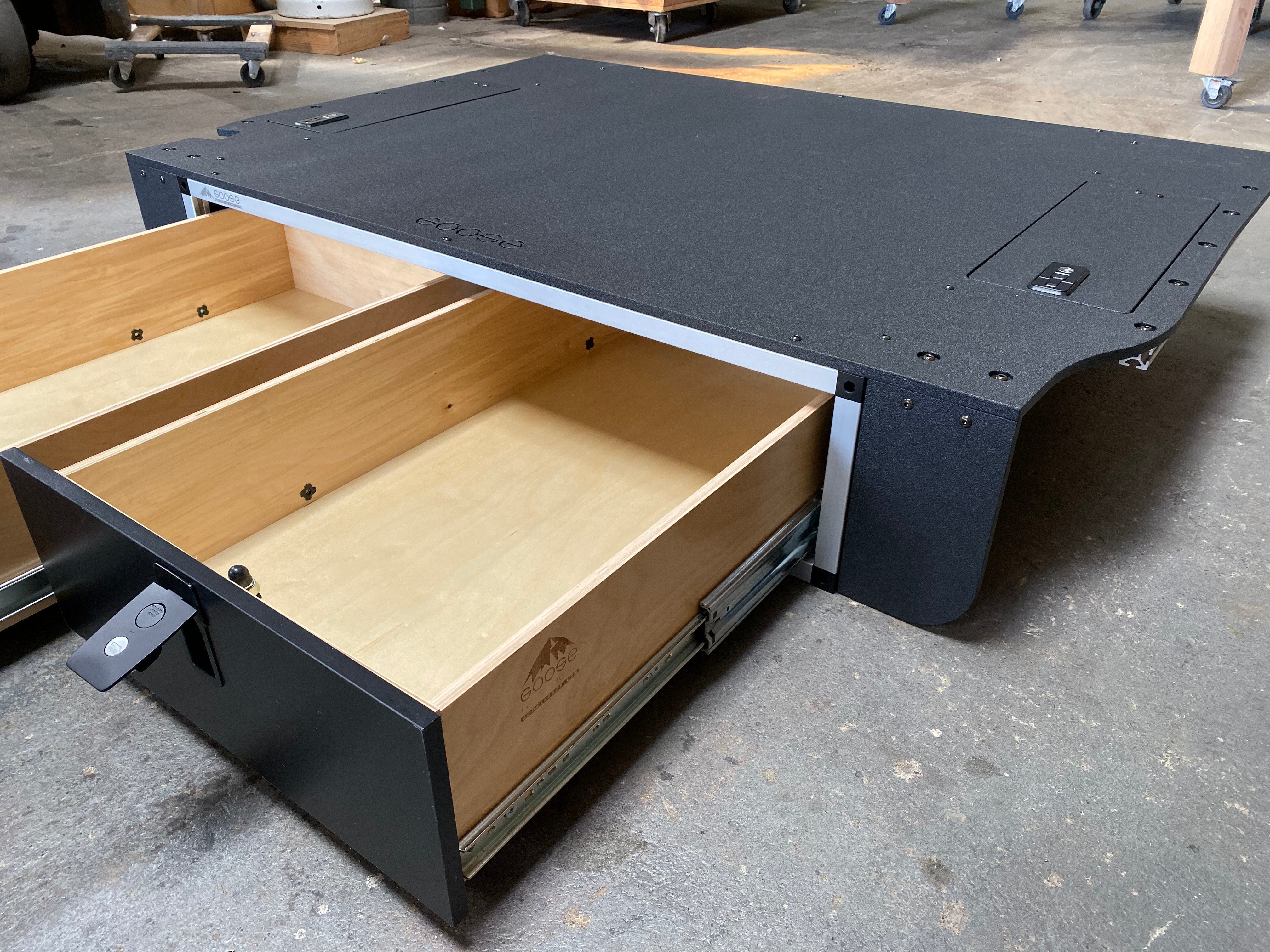

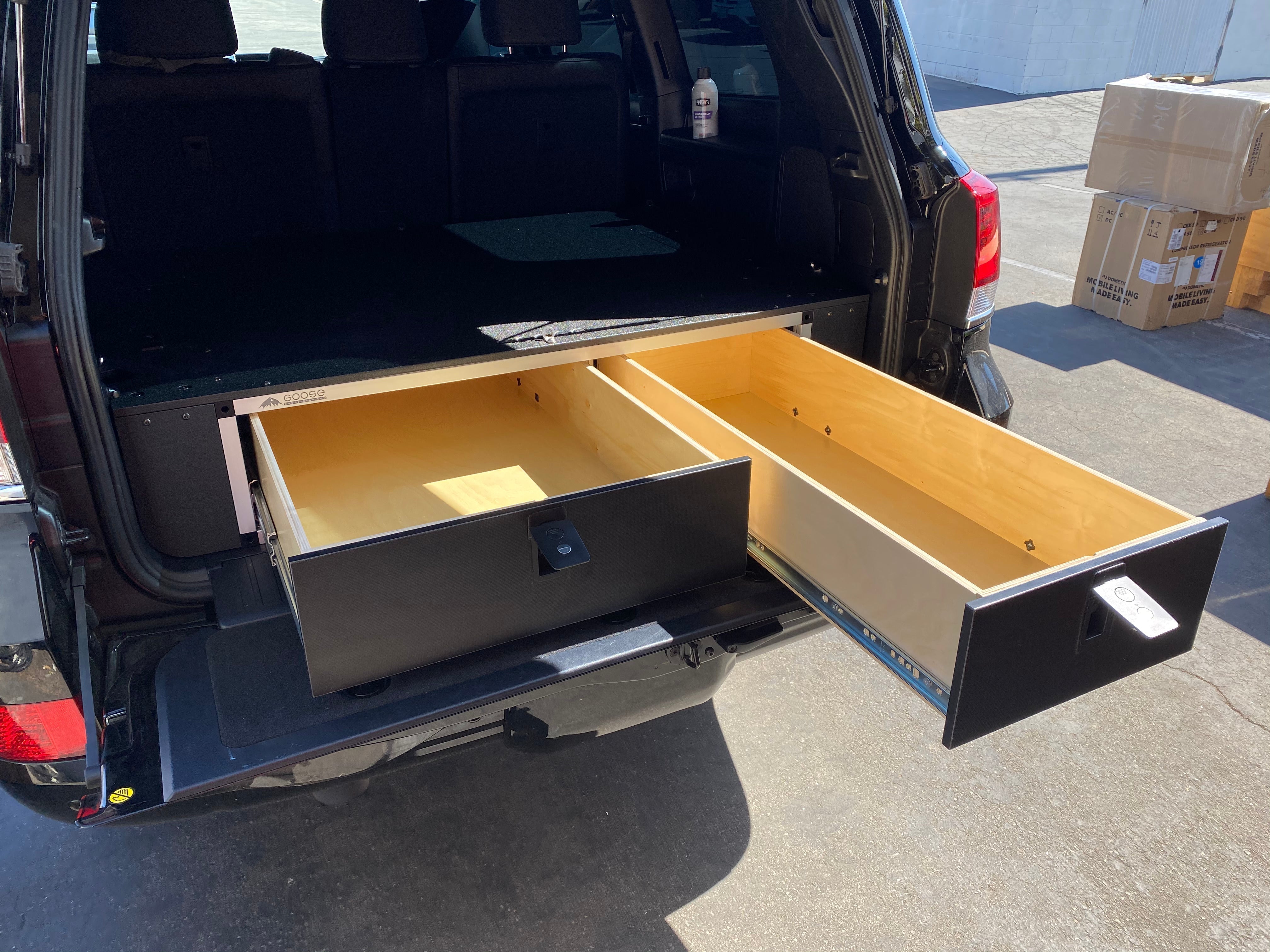

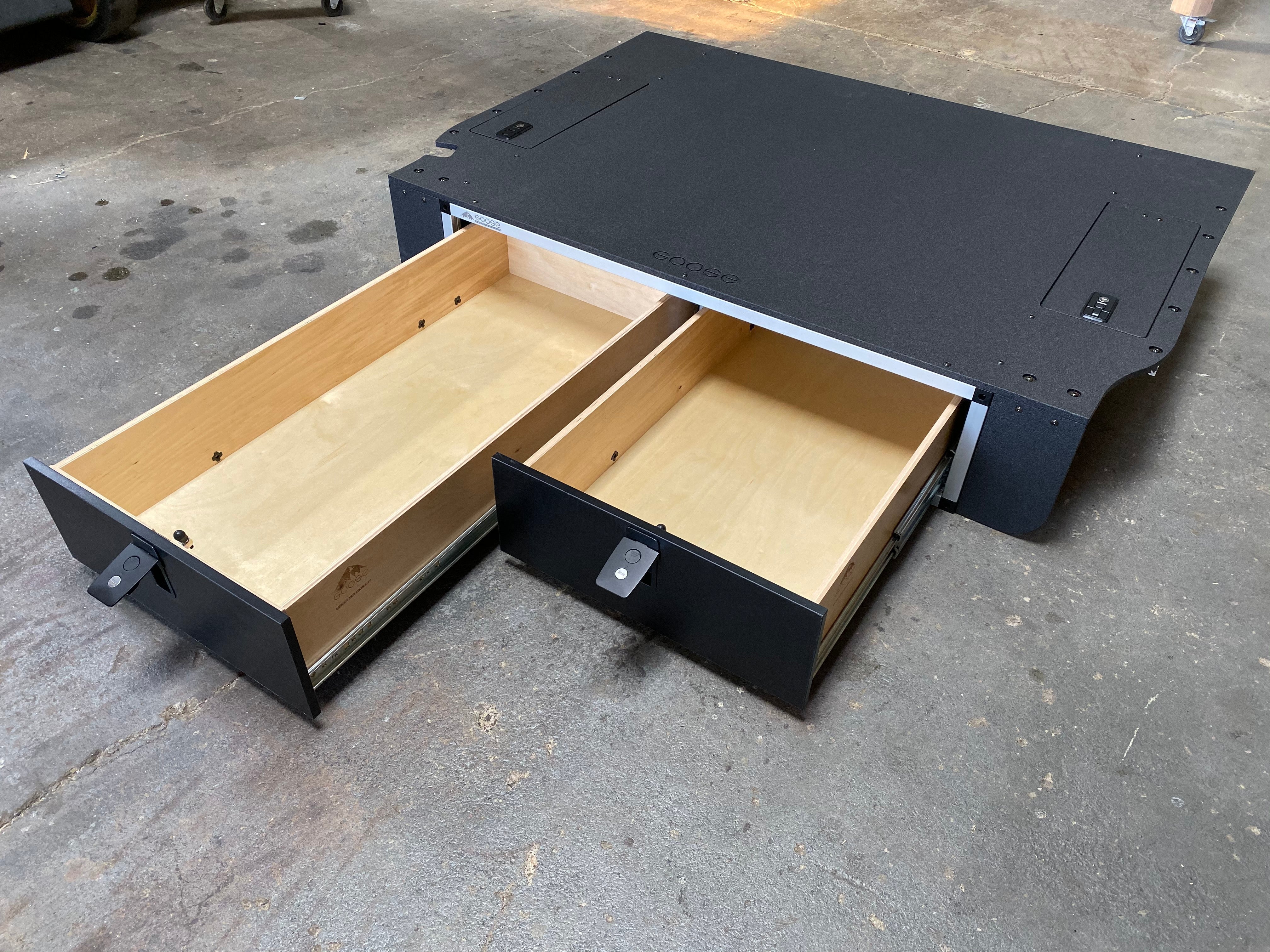

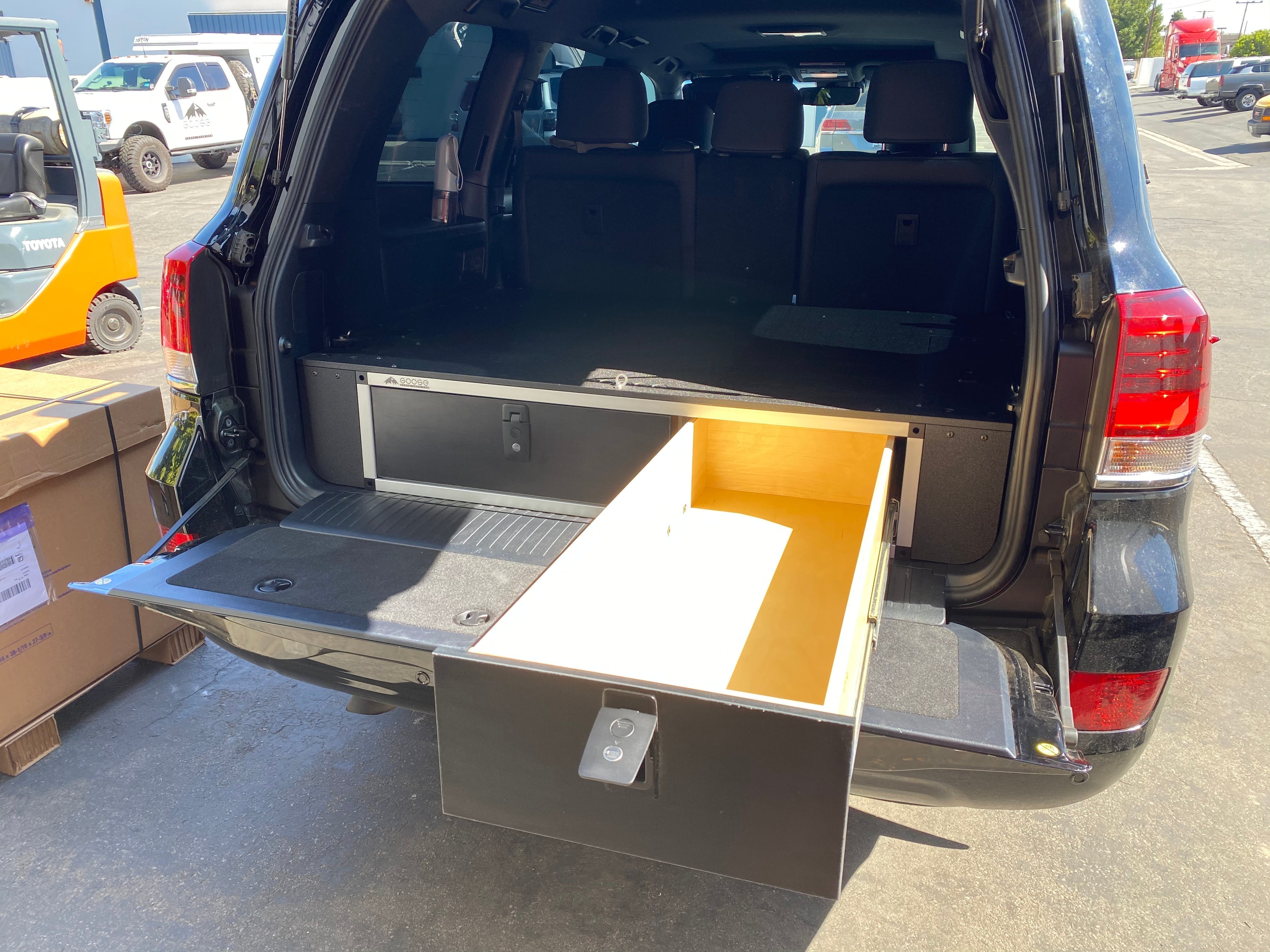

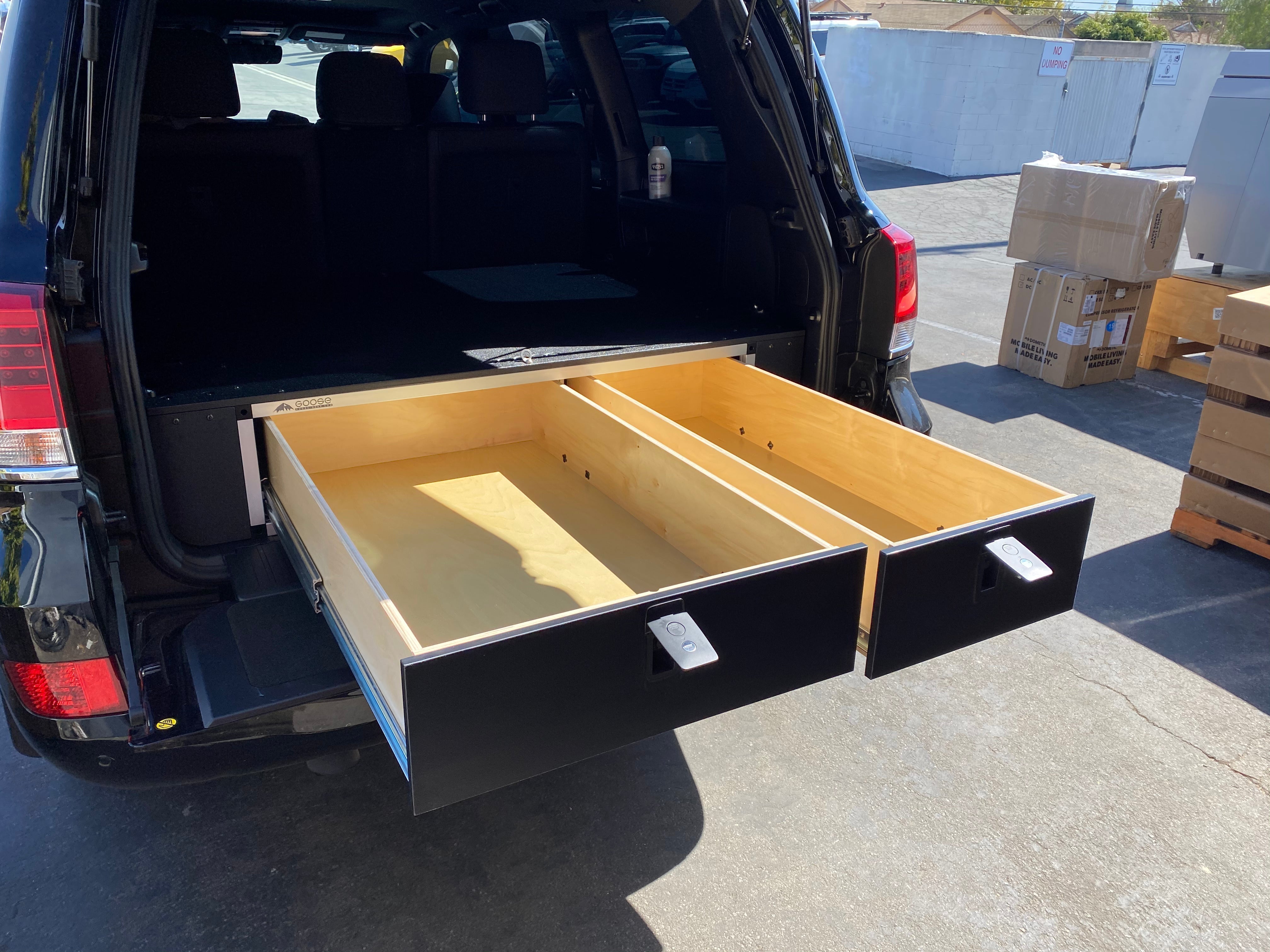

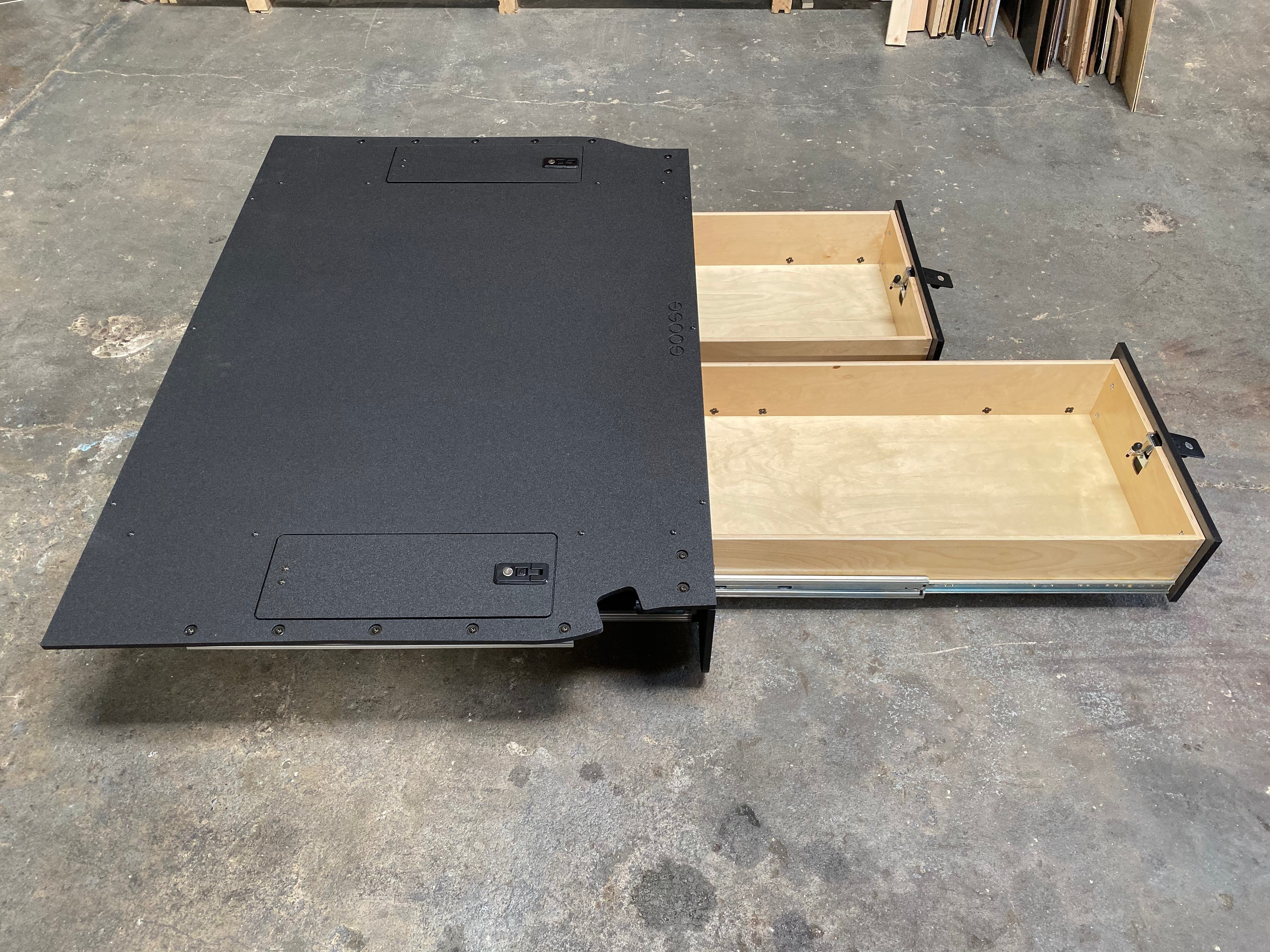

The Toyota Land Cruiser 100 Series Side x Side Drawer Module is designed for easy access gear storage, with two large slide out drawers for all your smaller gear.

This module requires the Land Cruiser 100 Series Rear Plate System™ for proper installation.

This module is designed specifically for the Land Cruiser 200 and comes in 9-1/2" height only to work with optional items such as sleeping platforms and storage compartments. The module measures 9-1/2" tall plus the Land Cruiser200 Top Plate for a total overall height of 10".

Side x Side Modules are available in 50/50 split, 1/3-2/3 split and 2/3-1/3 split configurations. The 1/3-2/3 split have the smaller drawer on the left side of the module and the 2/3-1/3 split have the smaller drawer on the right side of the module.

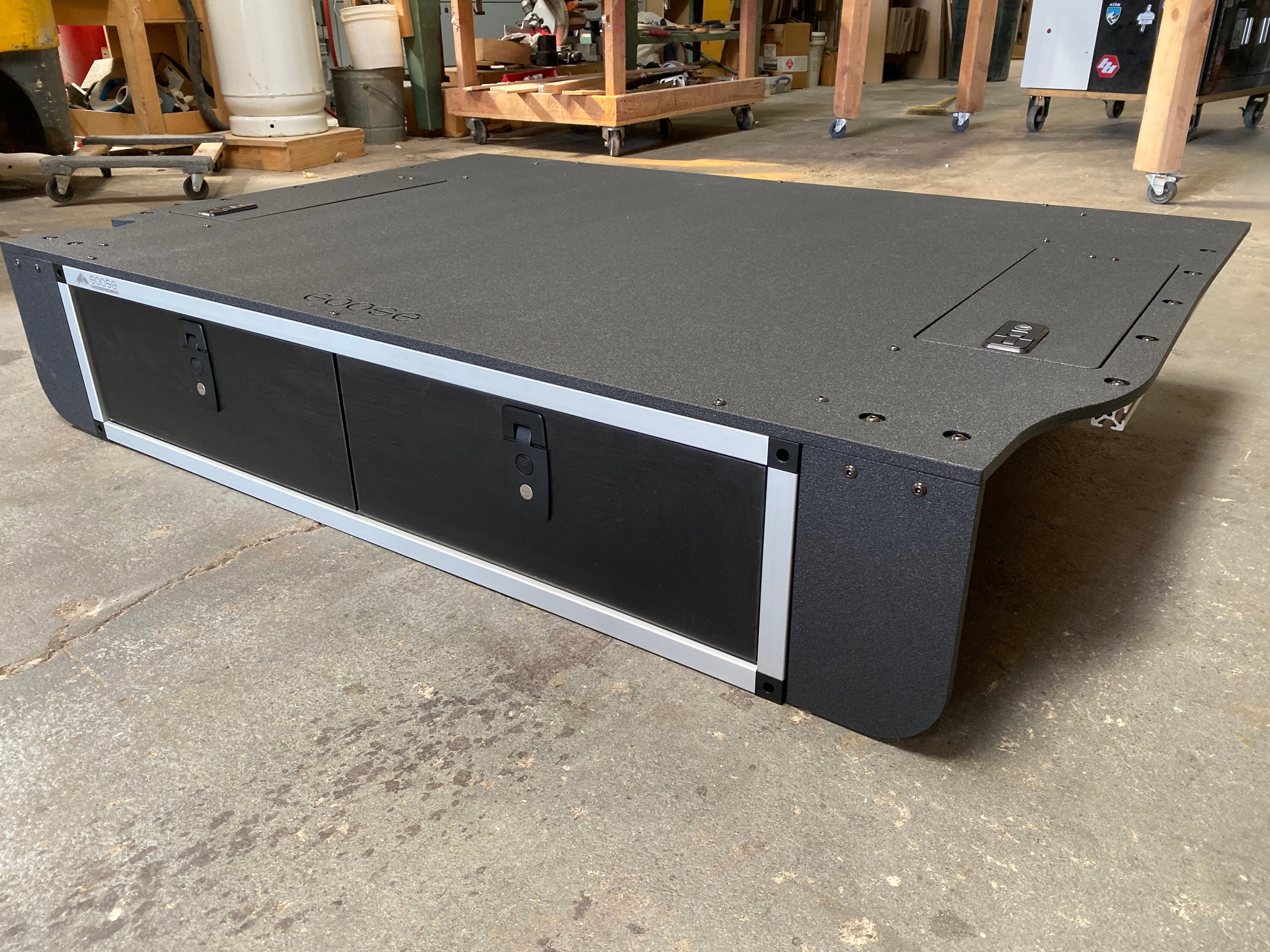

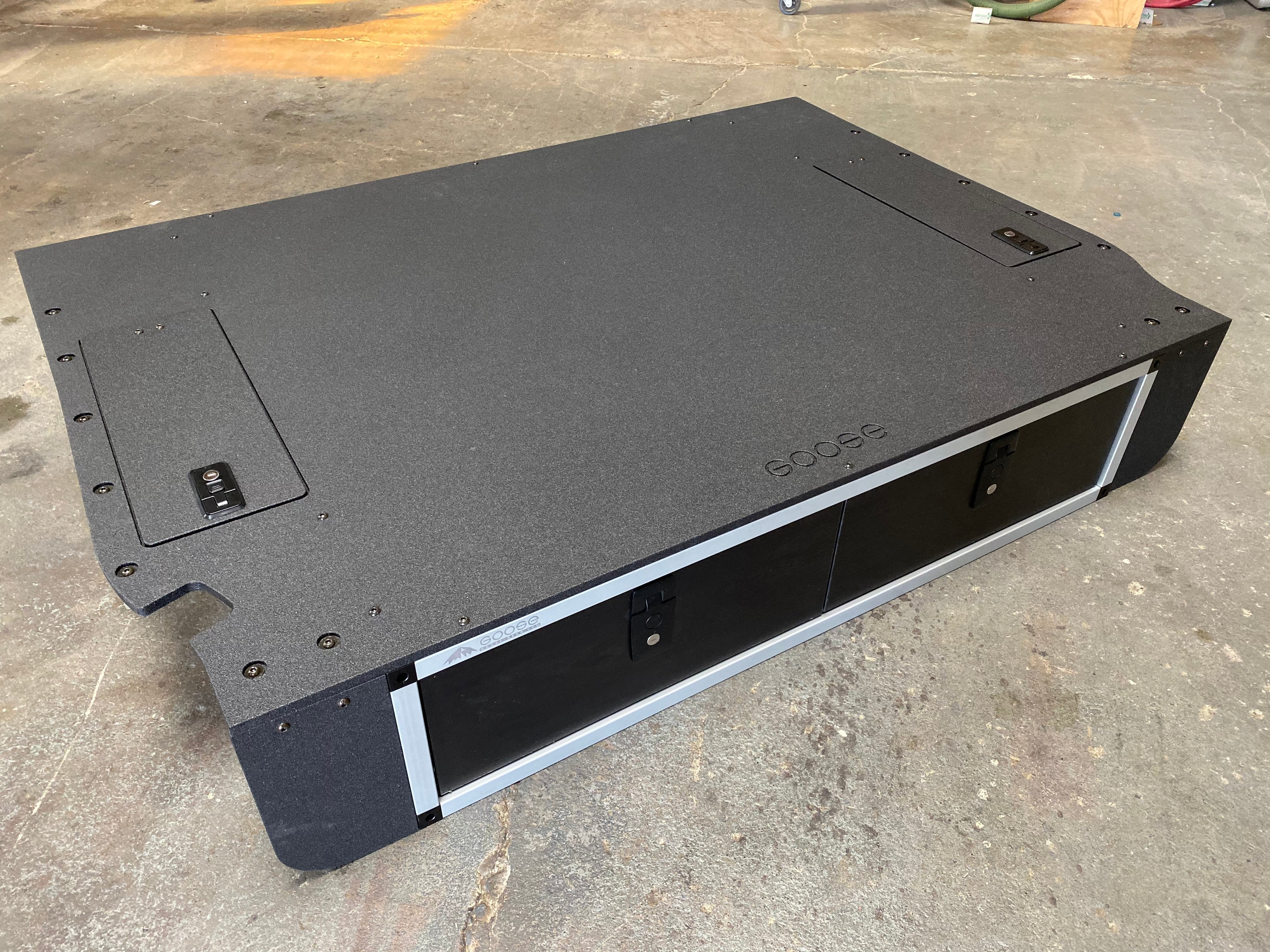

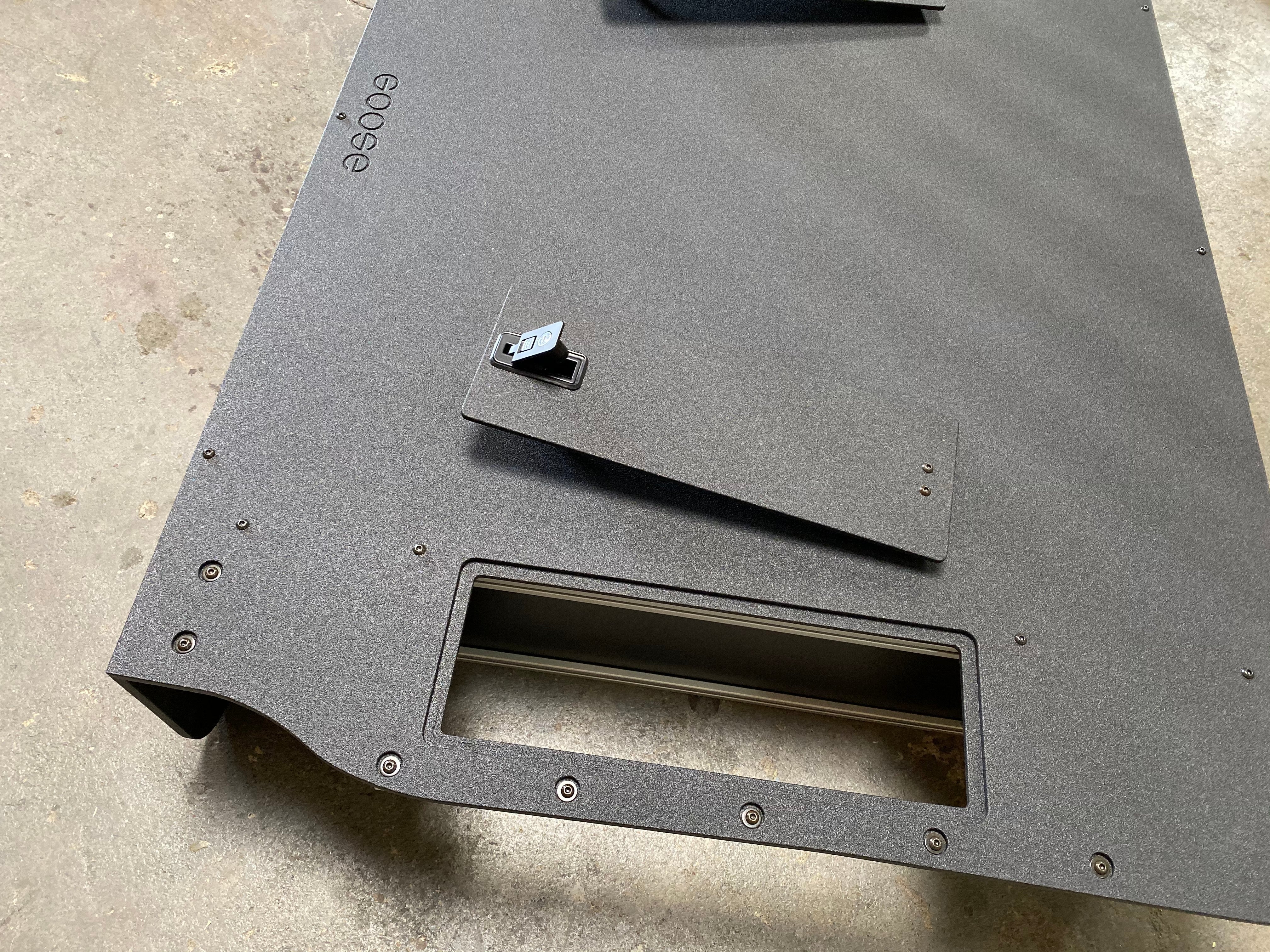

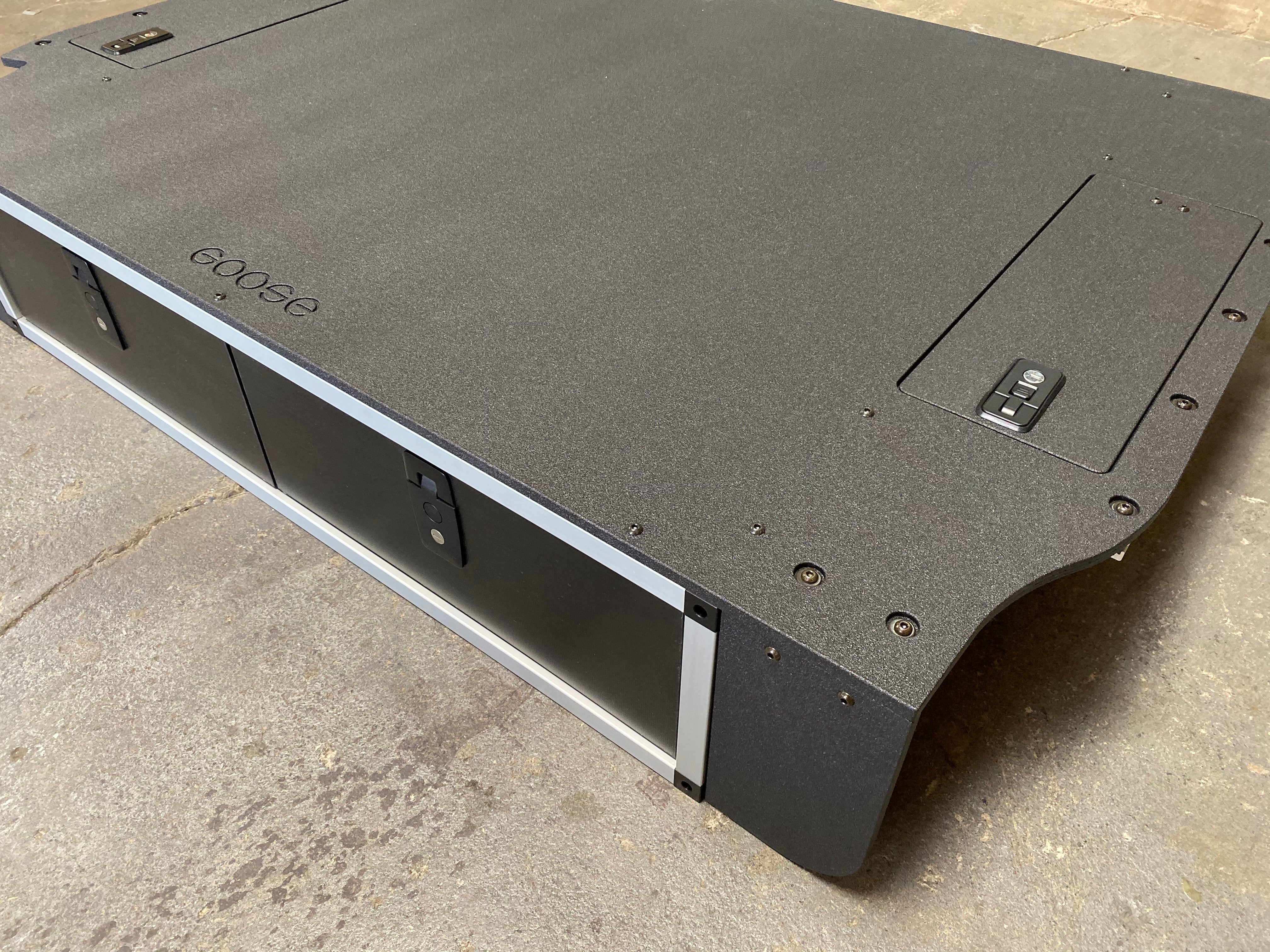

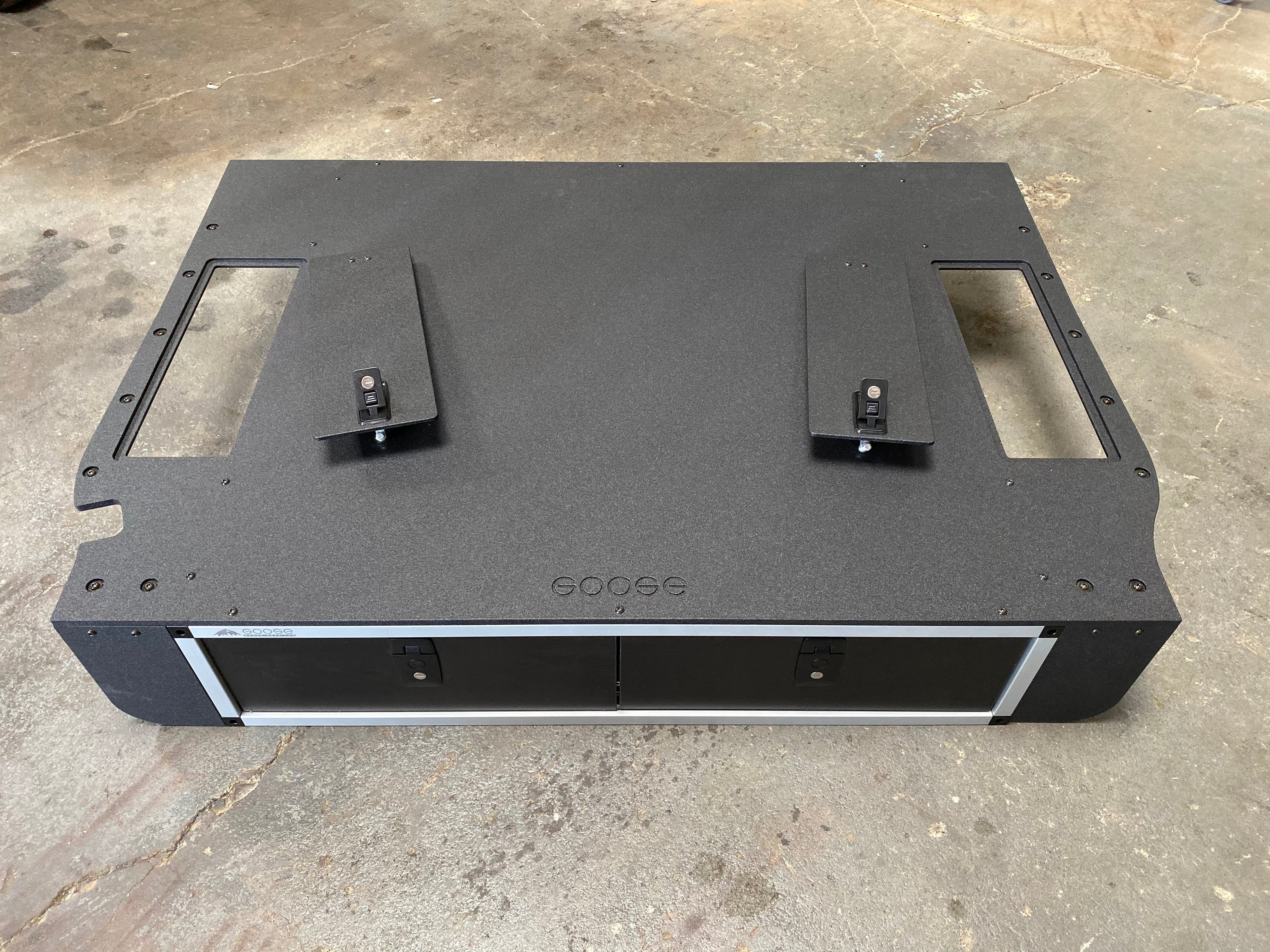

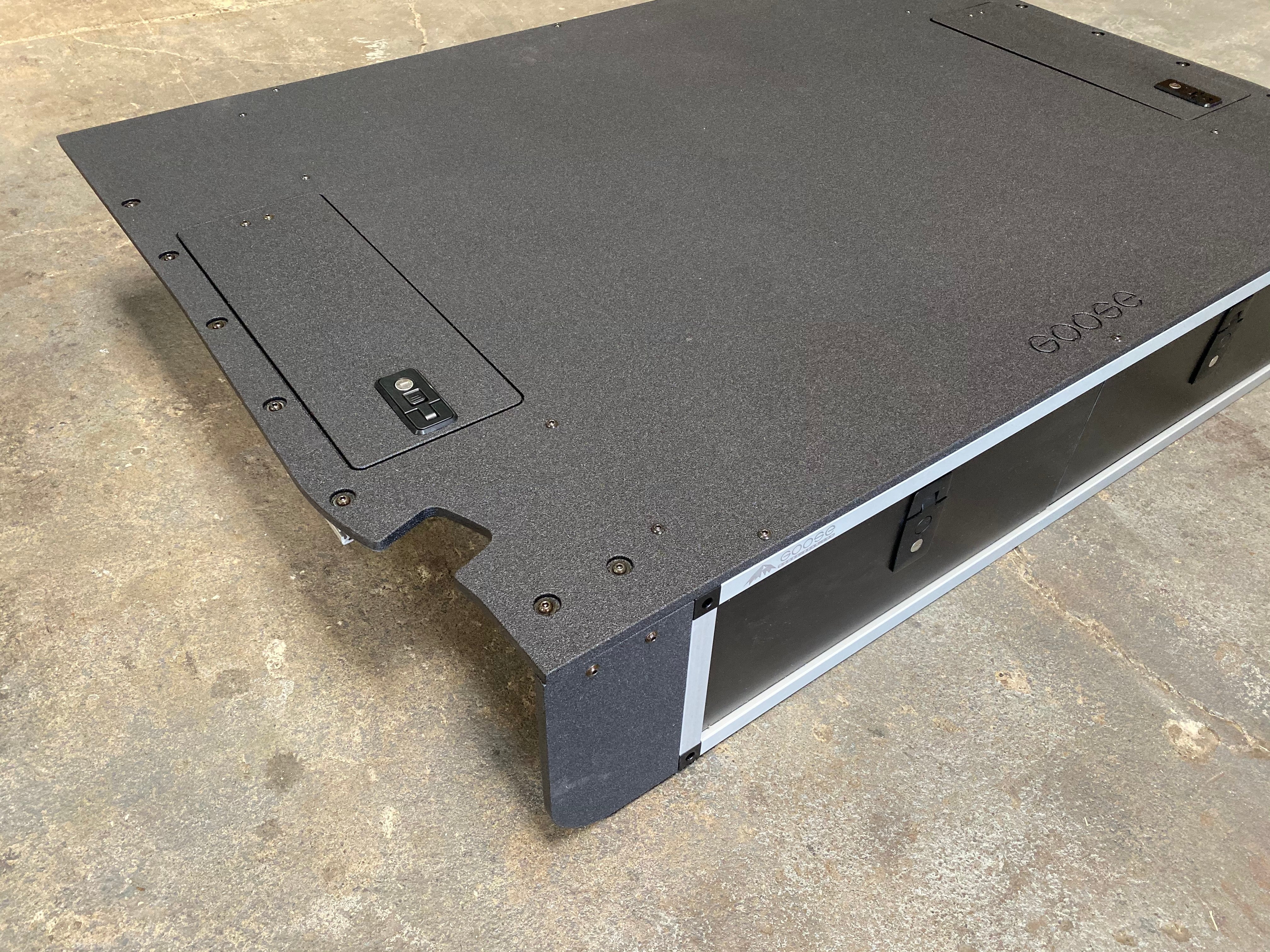

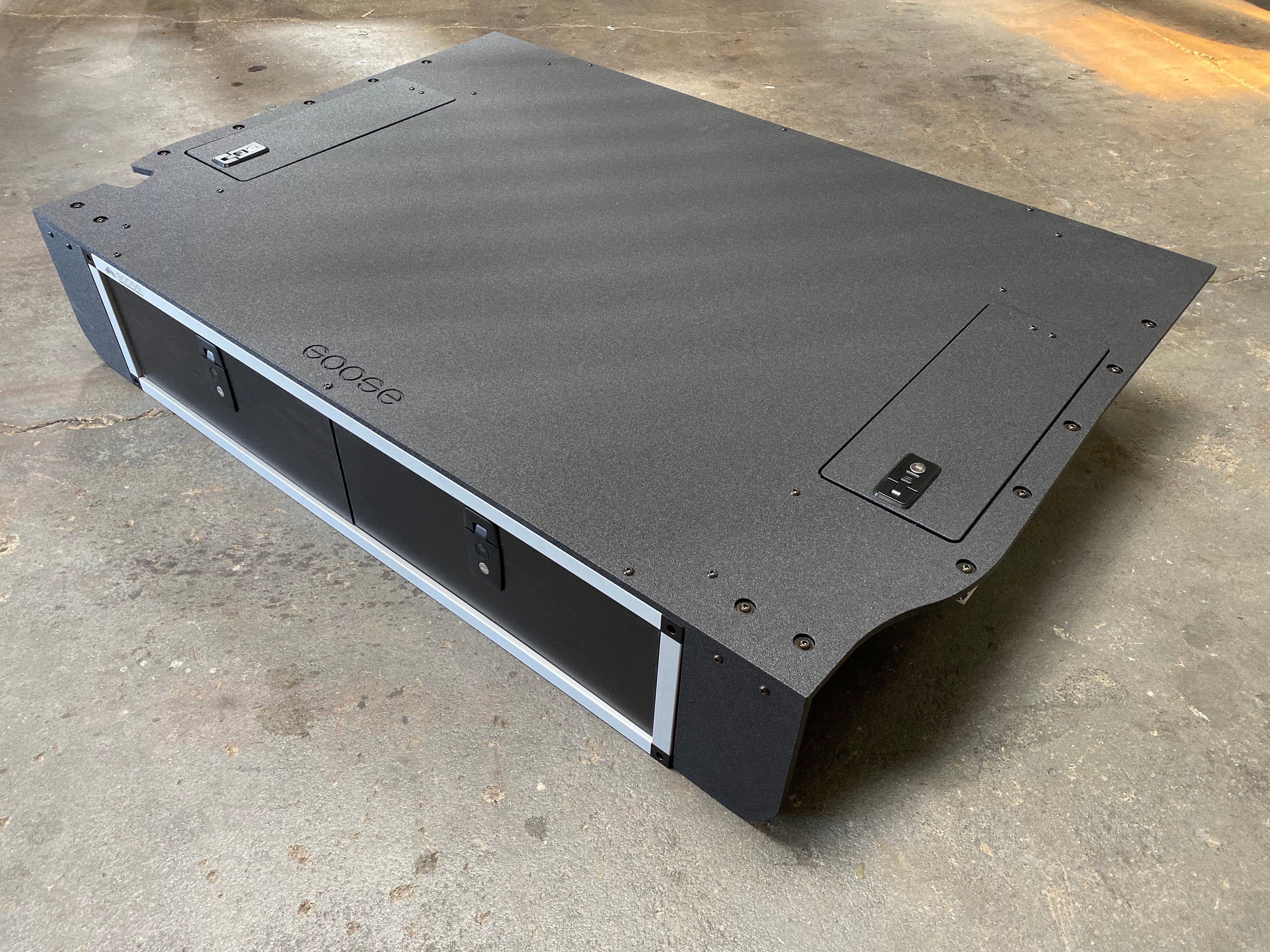

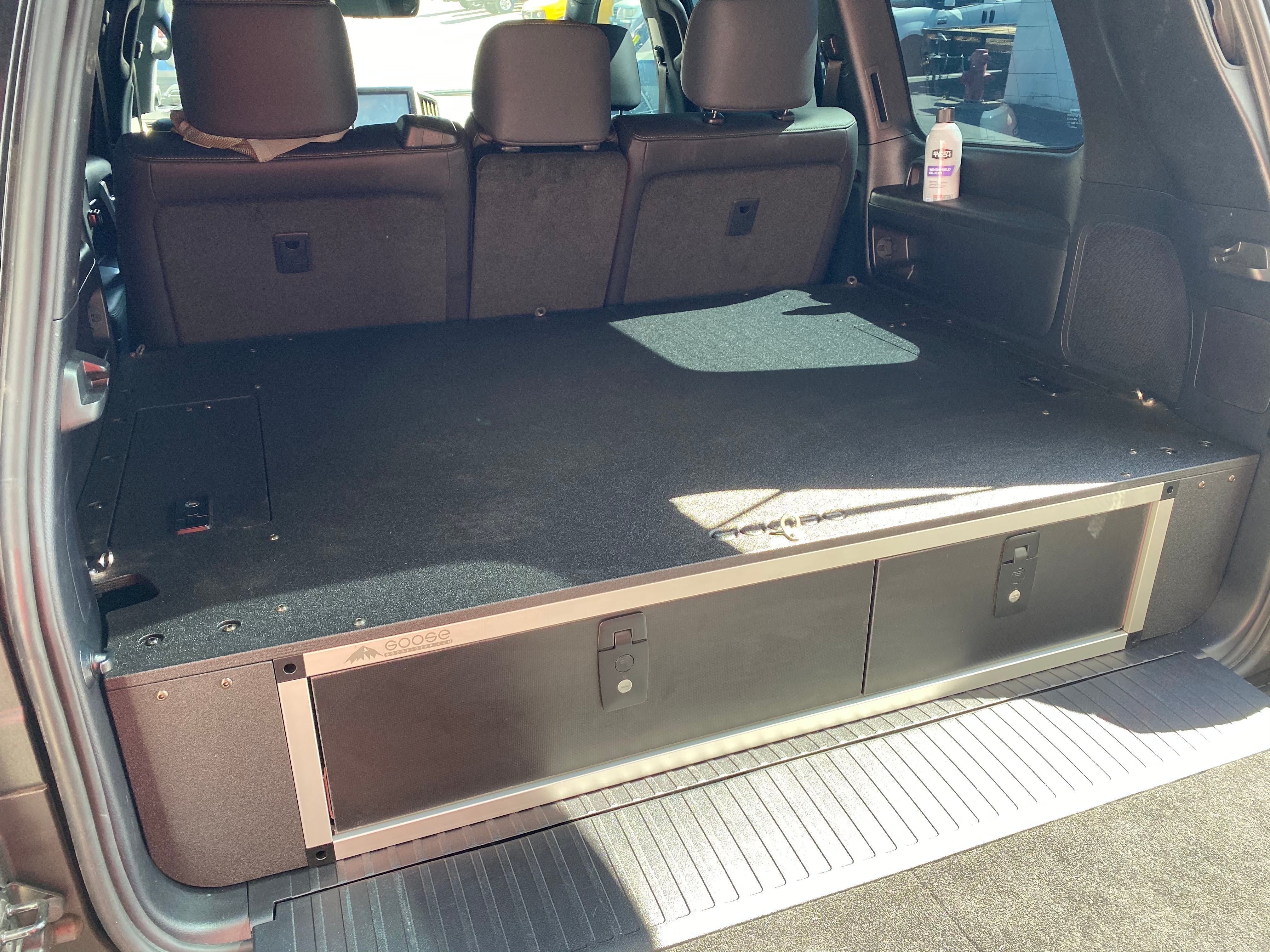

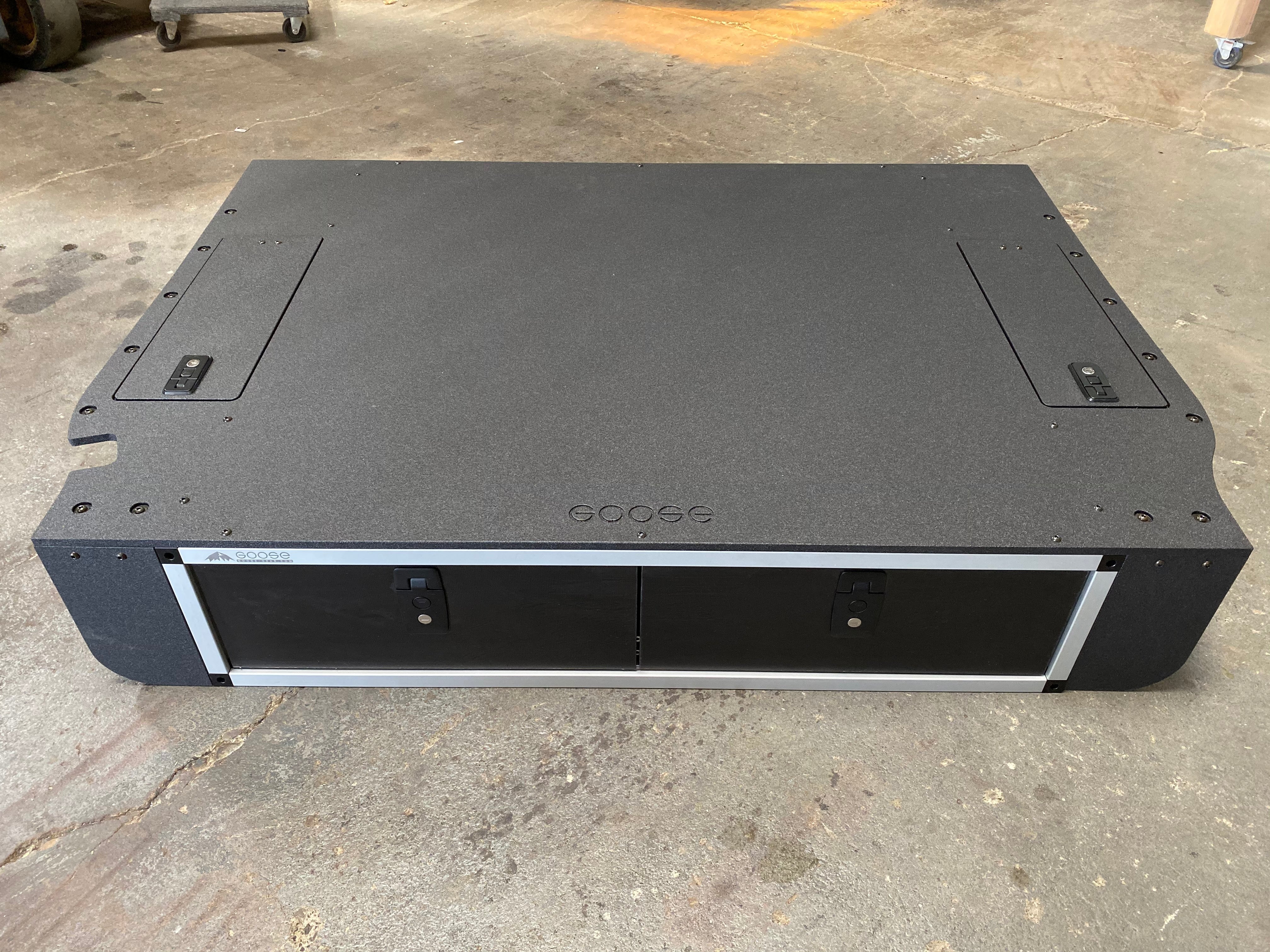

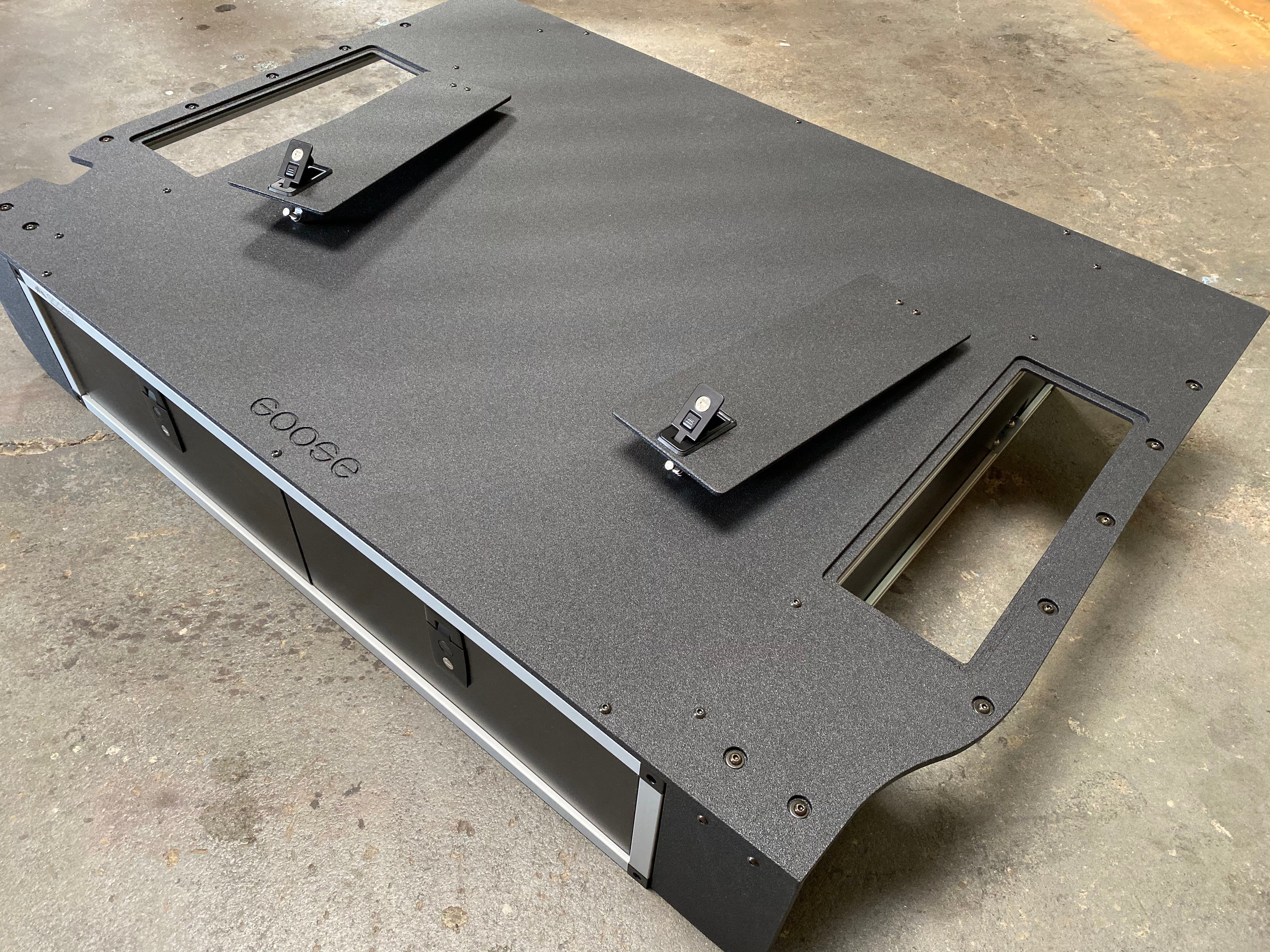

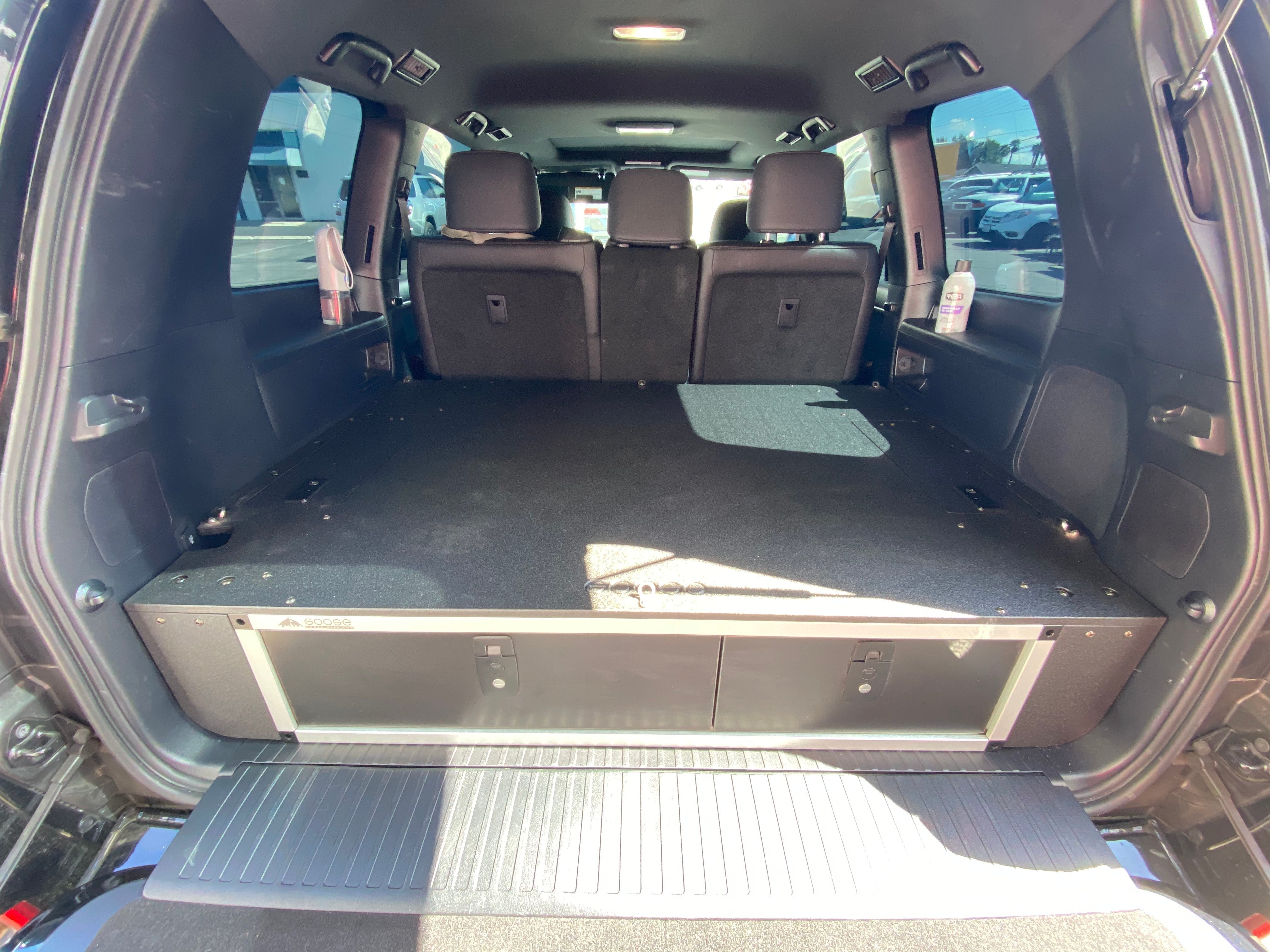

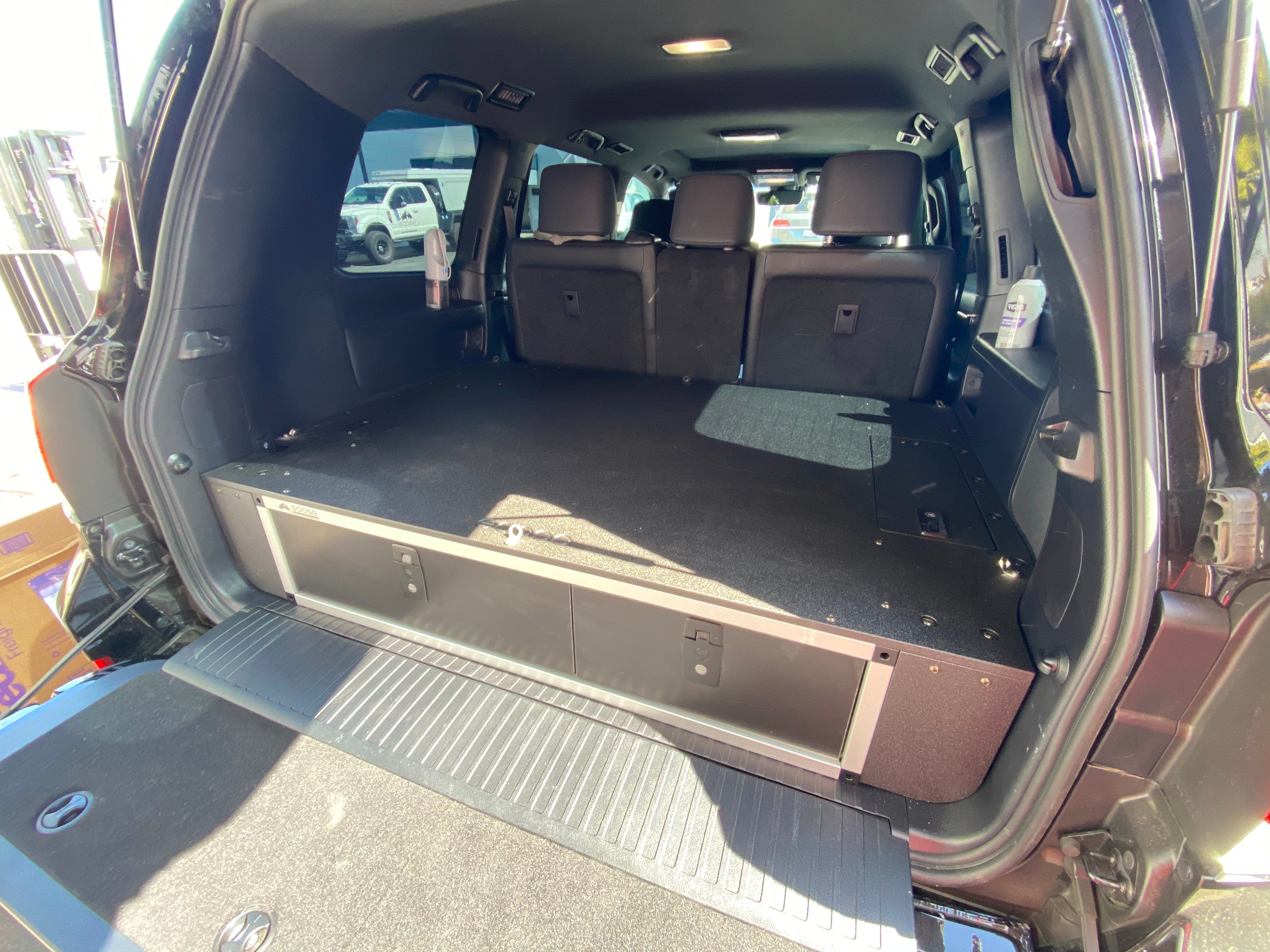

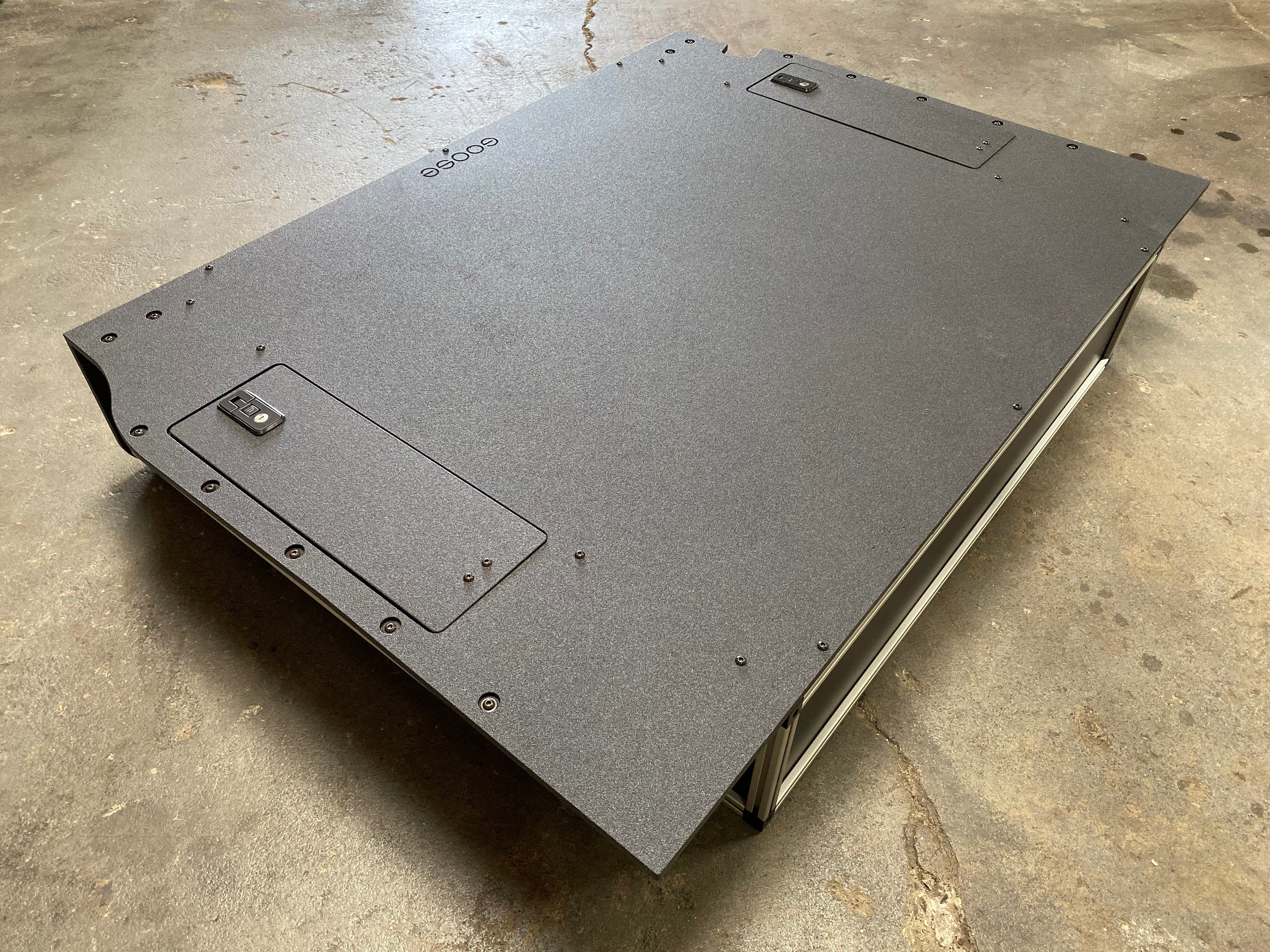

This Land Cruiser Specific Module features a bullet lined top plate for increased durability as well as a location to mount additional items such as anchors for fridge and cooler straps etc. The top plate is wider than the module and has wings that extend past the sides of the drawer module to follow the contours of the vehicle interior. On either side of the module there are two access doors in the top of the plate that create a lockable space just behind the wheel wells. This creates a flat surface that runs from wall to wall, seat back to back door.

When installing this unit onto the LC 200 rear plate you will need to slide the drawer module back off the rear edge of the plate approximately 1" to get the top plate to properly align with the interior trim.

Specifications:

  • Dimensions:  41 3/8" W x 40" D x 9-1/2" H
  • Drawer Module Weight: 124 Lbs.

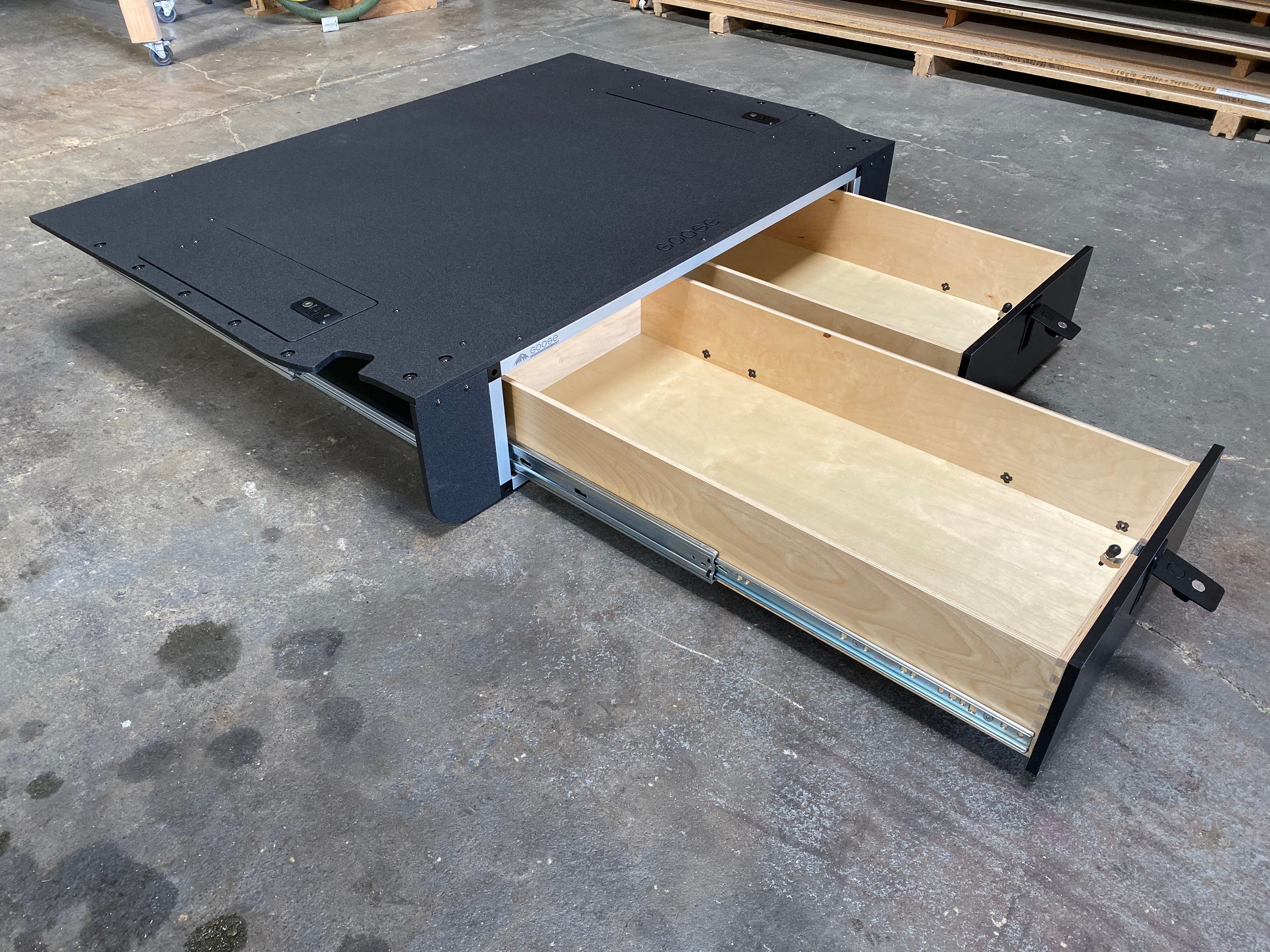

  • 350# rated drawer guides with 34" of travel
    • We recommend no more than 100# per drawer
  • Rear Plate System is required for install
  • Compatible with 2020 Heritage Edition



Legacy SKU:  SXSLC200-410940-50-BLK, SXSLC200-410940-33-BLK, SXSLC200-410940-66-BLK, SXSLC200-410940-50-GRY, SXSLC200-410940-33-GRY, SXSLC200-410940-66-GRY, SXSLC200-410940-50-WHT,  SXSLC200-410940-33-WHT,  SXSLC200-410940-66-WHT
